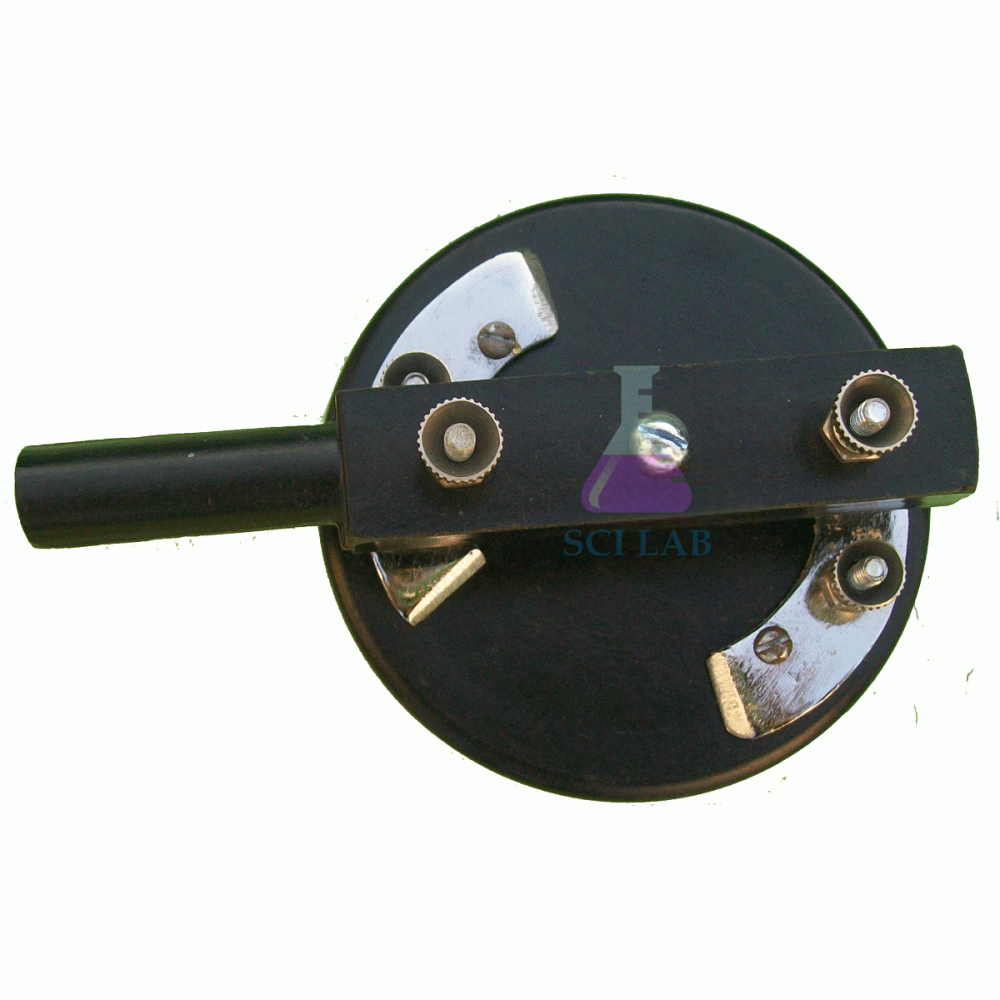

Reversing Key Commutator For Lab

Product Code : SCL-EAE-12119

The Reversing Key Commutator For Lab is a precision-engineered electrical switch used for reversing the direction of electric current flowing through an experimental circuit pathway. Designed primarily for physics students, researchers, and educators, this heavy-duty apparatus ensures rapid polarity changes to safely study electromagnetic fields and magnetic deflections without manual rewiring.

Product Description

The Reversing Key Commutator For Lab from Science Lab Supplies features a robust, high-insulation base plate designed to prevent localized grounding and leakage currents during dense benchtop experiments. The switch mechanism utilizes premium brass components arranged in a split-ring or four-way configuration, providing clean mechanical action and continuous conductivity.

This foundational tool is essential for streamlining quantitative analysis in school electricity modules. By eliminating the need to physically swap connection wires to reverse current flow, it significantly reduces errors, minimizes structural contact wear, and protects neighboring instruments. It functions seamlessly as a core asset among contemporary inventories.

Key Features

• High-Purity Brass Elements: Employs heavy-gauge brass rods and contact strips to minimize internal electrical resistance.
• Heavy Insulating Base: Built on a thick, impact-resistant polymer platform that completely isolates the electrical paths from laboratory workbenches.
• Smooth Lever Action: Features an ergonomic, non-conductive knob that toggles easily to flip polarity instantly.
• Four-Terminal Configuration: Equipped with secure binding posts to handle two separate input and two separate output leads easily.
• Zero-Position Isolation: Includes a central neutral or open position to safely isolate the circuit before changing current direction.
• Long Mechanical Lifespan: Precision-aligned components resist wear and structural looseness over thousands of manual toggles.

Technical Specifications

What's Included in the Kit

• 1 x Reversing Key Commutator For Lab unit
• 1 x Technical configuration leaflet with wiring bridge diagrams

Applications / Uses

• Reversing the current vector in Helmholtz coils to analyze shifts in uniform magnetic fields.
• Determining galvanometer constants by recording alternate-direction deflections to cancel out structural asymmetric biases.
• Integrating into comprehensive school physics focused on electromagnetism and Lenz's law.
• Configuring multi-directional circuit networks inside specialized electrical instruments workstations.
• Serving as a high-reliability toggle standard within student lab examination layouts.

How to Use the Reversing Key Commutator For Lab

1. Mount and Inspect: Position the commutator switch firmly on a flat, dry laboratory table and ensure all brass paths are free of debris.
2. Connect the Input: Attach the positive and negative leads from your low-voltage DC power supply to the designated input binding posts.
3. Connect the Output: Wire your primary load device, such as a tangent galvanometer or deflection magnetometer, to the corresponding output terminals.
4. Initialize in Neutral: Ensure the operating lever or key is placed in the open central position before turning on the power supply.
5. Toggle Current Direction: Move the lever to the left to establish forward current flow. To flip the polarity, bring the lever through the center neutral point and shift it to the right position.

Safety Note: Never exceed the maximum 3 Ampere current rating. Always bring the commutator to a complete stop in the neutral position before reversing the flow to avoid contact arcing and back-EMF spikes.

Care & Maintenance

• Clean Contact Points: Periodically rub the brass contact interfaces with a dry lint-free microfiber cloth or a mild abrasive pad to remove oxidation.
• Dry Cabinet Storage: Store the switch inside a low-humidity cabinet alongside companion to eliminate localized tarnishing.
• Tighten Mountings: Check the underside structural fixing screws occasionally to ensure the brass bars remain firmly attached to the base plate.

Why Choose Science Lab Supplies

Science Lab Supplies is a premier manufacturer and global exporter of high-precision scientific laboratory instruments, didactic models, and STEM training components. Backed by decades of manufacturing experience, we supply institutional systems, educational distributors, and school tenders in dozens of countries. Our advanced engineering processes enforce strict material selection and tolerance checks to ensure uniform electrical traits across all product batches.

Frequently Asked Questions

What is the primary function of a reversing key commutator in a lab?

The primary function is to quickly flip the direction of electric current flowing through a circuit loop without requiring the operator to manually swap the input power wires at the terminals.

Can this reversing key commutator handle high voltage mains power lines?

No, this commutator is engineered explicitly for low-voltage educational physics demonstrations up to 24V DC and must never be attached to high-voltage mains power supplies.

Why is brass preferred for the contact bars on this switch?

Brass is selected because it offers superior electrical conductivity, excellent mechanical wear resistance, and high structural stability during manual adjustments.

How does this device help during galvanometer calibration experiments?

By allowing rapid reversals of the current direction, it enables students to average out deflections on both sides of the zero mark, which cancels out systematic errors caused by terrestrial magnetic misalignment.

What types of wire connections can be attached to the terminals?

The apparatus is equipped with universal 4mm brass binding posts that easily secure bare hookup wire, spade terminals, or standard alligator clips.
