Pencil Jockey for lab

Product Code : SCL-EAE-12117

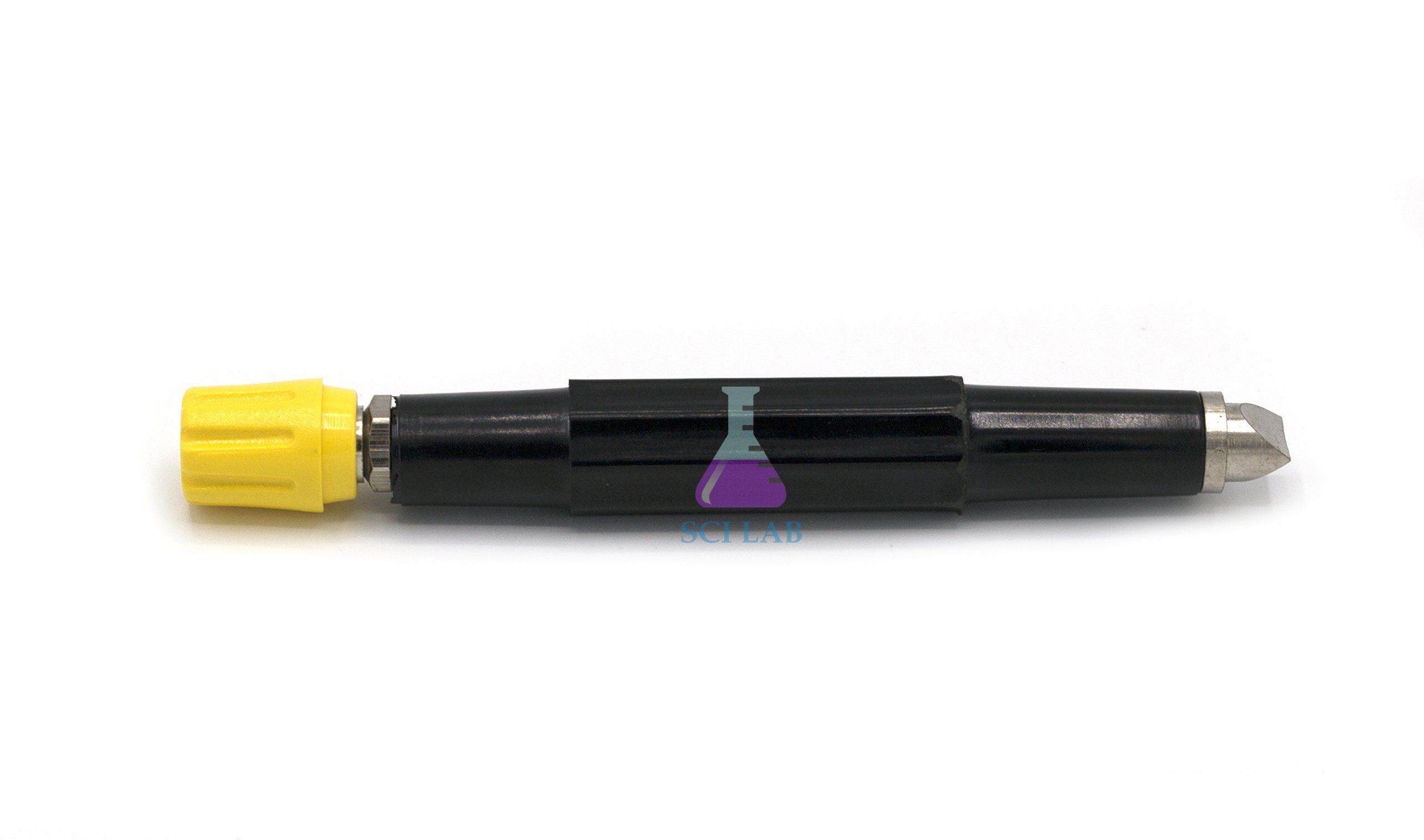

The Pencil Jockey for Lab is a pen-shaped electrical contact probe used for making temporary sliding connections along resistance wires in physics experiments. Engineered for students, teachers, and lab technicians, this tool provides a safe, insulated handle to locate exact null deflection points on potentiometers and bridge apparatuses without damaging the underlying wire.

Product Description

The Pencil Jockey for Lab from Science Lab Supplies is manufactured with a heavy-duty, highly insulated non-conductive handle to protect users from stray currents during electrical measurement tasks. The probe features a precision-machined, heavy-plated brass contact tip shaped into a fine knife-edge. This structural design allows for a highly localized point of contact on resistance wires made of manganin or constantan, guaranteeing clean data transfer to the diagnostic circuit loop.

This compact component is an invaluable classroom asset for high school physics labs and engineering training units. By incorporating a standard 4mm terminal socket at the top end, it integrates immediately with standard banana-plug test leads. It serves as a necessary consumable and operational tool alongside larger modules.

Key Features

• Insulated Pen Profile: The sleek, pen-like design allows students to grip the probe naturally, reducing physical errors when sliding it over small scale increments.
• Plated Brass Knife-Edge: Provides premium electrical conductivity and resists structural oxidation, preserving contact sensitivity over thousands of cycles.
• Standard 4mm Top Socket: Features an integrated brass terminal socket that accepts all standard lab patch cords and test leads smoothly.
• Wire-Friendly Contact Tip: Designed to slide gently across delicate alloy wires without scraping, kinking, or compromising the cross-sectional area.
• Heavy-Duty Body Material: Fabricated from rugged ebonite or high-impact polymer to withstand regular school laboratory use.
• Compact Storage Size: Small physical footprint makes it easy to catalog, distribute, and store within classroom instrument drawers.

Technical Specifications

What's Included in the Kit

• 1 x Pencil Jockey for Lab with integrated 4mm socket terminal
• 1 x Protective tip cap for safe storage

Applications / Uses

• Locating the exact balancing or null point along a classic Wheatstone meter bridge setup.
• Comparing the Electromotive Force (EMF) of two primary battery cells using multi-wire potentiometers.
• Measuring unknown low-range structural electrical resistances with high precision.

How to Use the Pencil Jockey for Lab

1. Prepare the Setup: Arrange your meter bridge or potentiometer apparatus on a flat benchtop.
2. Connect the Lead Wire: Insert a standard 4mm banana plug lead coming from your galvanometer directly into the top socket of the jockey.
3. Check the Circuit: Verify that all other terminal screws on your circuit box are tight before checking for null deflection.
4. Make Temporary Contact: Hold the insulated handle firmly and gently press the knife-edge tip vertically onto the resistance wire at your starting point.
5. Slide or Tap to Locate Balance: Move the probe systematically along the wire length, observing the galvanometer needle until it reaches absolute zero deflection.
6. Record the Metric Length: Note the physical balancing length directly from the parallel meter scale to complete your resistance formula calculations.

Handling Note: Always lift or slide the probe with minimal downward force. Scraping the tip roughly against the resistance wire will deform the core metal and introduce systemic calibration errors.

Care & Maintenance

• Tip Inspection: Periodically inspect the brass knife-edge for carbon deposits or micro-scratches; wipe gently with fine sandpaper or a dry lint-free cloth if needed.
• Socket Maintenance: Keep the top 4mm socket dry and clear of dust to ensure a low-resistance terminal connection.
• Storage Environment: Store the item inside its protective storage sleeve in a low-humidity instrument locker alongside matching laboratory instruments.

Why Choose Science Lab Supplies
