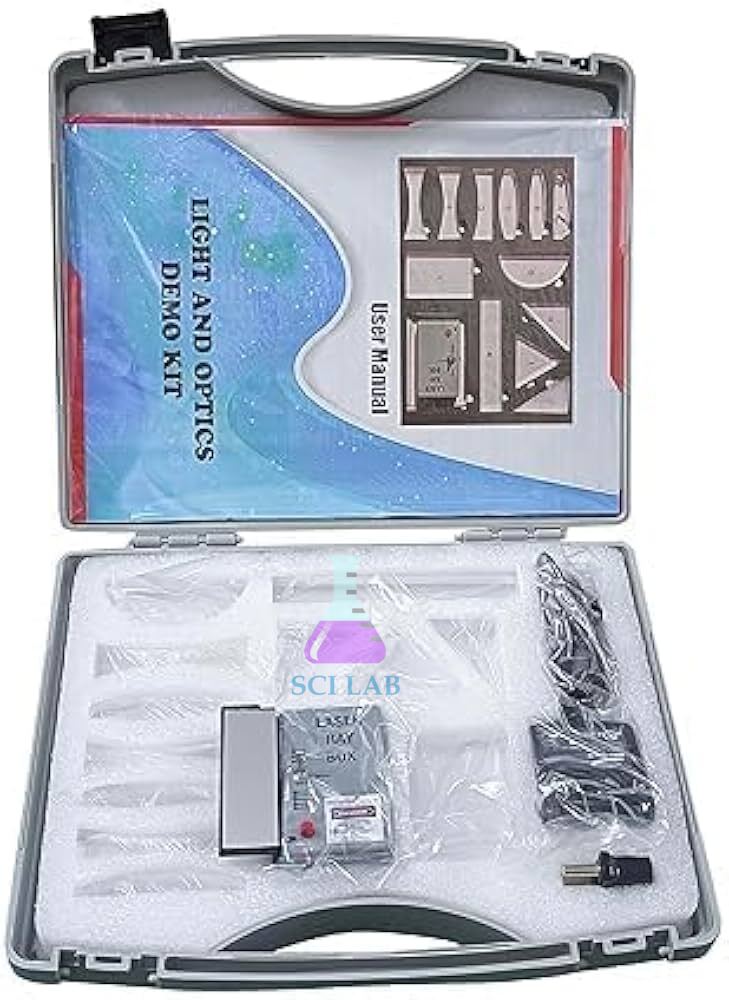

Ray Optics Laser Laboratory Kit

Product Code : SCL-LAO-12082

The Laser Ray Optics Kit is a comprehensive educational optical apparatus used for visualizing light ray paths and demonstrating the laws of geometric optics. Engineered for physics educators and university students, this modular kit enables clear tracking of reflection, refraction, and focal alignments to verify classical optical physics equations.

Product Description

This advanced instructional kit offers an all-in-one platform for conducting diverse ray tracing experiments under standard classroom illumination. Built with magnetic-backed components, the set includes a high-intensity laser ray box alongside precision-molded acrylic optical elements like prisms, blocks, and cylindrical lenses. The polished boundaries of each element ensure clean light transmission while reducing diffuse scattering.

By providing an interactive experience with multiple visible beams, the kit simplifies geometric concept instruction. It serves as an essential upgrade for institutional inventories, moving students from basic textbook diagrams to active quantitative calculations. This durable configuration withstands frequent manipulation by laboratory groups, ensuring high long-term value.

Key Features

• Multi-Beam Laser Ray Box: Emits up to five independent, parallel laser lines for highly visible geometric mapping.
• Magnetic Element Stability: Equipped with integrated magnetic layers on all optical elements for effortless vertical board attachment.
• Shatterproof Acrylic Shapes: Fabricated from high-transmittance optical polymer to ensure total student safety and long-term break resistance.
• Printed Angular Template Board: Features a non-glare magnetic tracking surface permanently marked with a polar protractor matrix.
• Color-Coded Wavelength Guides: Includes primary wavelength filters to explore light dispersion and basic color mixing properties.

Technical Specifications

What's Included in the Kit

• 1 x Five-beam diode laser ray box light source
• 1 x Magnetic steel ray tracking board with polar grid
• 1 x Semicircular acrylic refraction block
• 1 x Rectangular refraction block
• 1 x Equilateral triangular prism
• 1 x Bi-convex cylindrical lens element
• 1 x Bi-concave cylindrical lens element
• 1 x 5V DC universal power supply adapter
• 1 x Padded hard-shell storage case with custom foam inlay

Applications / Uses

• Tracing beam geometries to confirm Snell's physical law at refractive borders

• Determining focal lengths of concave and convex lenses by tracking multi-beam convergence to satisfy the thin lens equation

• Demonstrating total internal reflection principles and establishing critical angle thresholds inside distinct materials.
• Expanding core competencies inside modular during advanced wave mechanics courses.

How to Use the Laser Ray Optics Kit

1. Set the magnetic tracking board flat on a horizontal laboratory bench or prop it vertically against a ferrous board.
2. Position the multi-beam laser ray box at one edge of the printed coordinate grid.
3. Connect the 5V DC power adapter to the ray box jack and switch on the diode array.
4. Select the desired 1, 3, or 5 parallel beam profile via the mechanical switch toggles.
5. Place an acrylic prism or lens directly into the path of the projected lines to evaluate light refraction.
6. Map the entry, internal, and emergent ray tracks using a fine dry-erase marker on the tracking plane.

Safety Note: Avoid looking directly into the open diode apertures or exposing human eyes to direct laser reflections to prevent retinal strain.

Care & Maintenance

• Cleaning: Clean the polished acrylic elements exclusively with a dry microfiber cloth; avoid window cleaners containing acetone or ammonia.
• Storage: Keep all system parts securely packed inside the foam-lined hard case to protect element margins from scoring.
• Handling: Unplug the DC power module after laboratory sessions to preserve the solid-state electronic drivers.

Why Choose Science Lab Supplies

Science Lab Supplies is a premier global manufacturer and exporter of trusted laboratory instruments and educational STEM setups. With decades of technical production experience, we combine rugged, institutional-grade raw materials with precise geometric specifications. Our operational facilities strictly adhere to international quality control audits to ensure reliable classroom performance. Backed by highly efficient international distribution channels, we fulfill bulk orders to schools, universities, and commercial supply vendors worldwide.

Frequently Asked Questions

How visible are the laser lines in a bright classroom?

The kit uses high-lumen Class II diodes that project sharp, localized red lines visible under standard room lighting without requiring complete blackout.

Are the lenses safe if dropped by students?

Yes, the prisms and shapes are crafted from optical PMMA acrylic rather than standard silicate glass, making them entirely shatterproof.

Can you write directly on the tracking board?

Yes, the steel board features a non-glare matte enamel layer that accepts dry-erase markers for quick ray sketching and wipes clean easily.

What is the distance between the parallel laser beams?

The calibrated internal collimating optics inside the ray box project lines with a precise, fixed spatial separation of 15 mm.

Does the kit include an internal battery pack?

The standard configuration runs battery-free via an included 5V DC mains power adapter for steady, uninterrupted runtime cycles.
