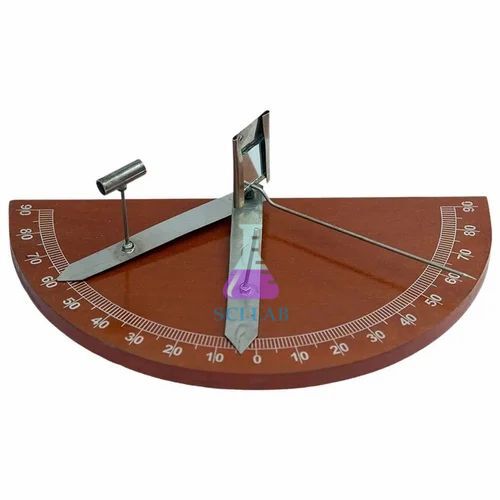

Light Ray Reflection Demonstrator

Product Code : SCL-LAO-12089

The Light Ray Reflection Demonstrator is a specialized optical physics instrument used for visualizing light paths and validating the classical laws of reflection. Designed for physics educators and secondary school students, this apparatus provides an interactive platform to track incident and reflected laser beams across varied specular geometries.

Product Description

This technical demonstration tool offers a robust, stable layout for exploring geometric optics in school laboratories. Fabricated with a heavy-duty steel backing frame and an integrated, non-glare circular protractor disc, it ensures maximum stability during delicate ray tracking procedures. The durable screen surface captures light paths accurately, allowing entire student groups to observe beam behaviors clearly without adjusting room illumination.

For academic institutions seeking to update their standard inventory of physics lab equipment, this demonstrator provides excellent long-term educational utility. It actively bridges the gap between abstract ray equations and real-world physical behavior, making it a reliable choice for core science modules. The rugged components are engineered specifically to withstand daily handling by multiple student cohorts throughout the academic year.

Key Features

• Permanently Etched Angular Scale: Features a bold $360^\circ$ circular coordinate grid with 1-degree resolution lines for rapid angular data gathering.
• Shatterproof Mirror Array: Equipped with premium vacuum-metallized optical acrylic elements to ensure absolute classroom safety and drop resistance.
• Magnetic Element Mounting: Utilizes built-in magnetic layers on the back of all optical segments to secure flush placement on the tracking panel.
• High-Visibility Matte Surface: Designed with a texturized white enamel layer that diffuses incoming laser paths isotropically for clear, wide-angle viewing.
• Universal Light Source Track: Built with an adjustable outer boundary rail that hosts standard multi-beam laser ray boxes seamlessly.

Technical Specifications

What's Included in the Kit

• 1 x Light Ray Reflection Demonstrator main tracking board assembly
• 1 x Magnetic planar mirror optical component
• 1 x Magnetic concave/convex combination mirror element
• 1 x Vertical alignment object needle marker
• 1 x User manual containing structural experiment templates

Applications / Uses

• Demonstrating the fundamental law of reflection across flat specular surfaces where the incoming and outgoing angles satisfy:
• Locating the physical focal point and curvature center of cylindrical concave mirrors to confirm the mathematical property:
• Investigating virtual image divergence and spatial magnification trends on convex mirror planes.
• Expanding baseline optical experiments when combined with versatile, modular optics experiment kits.

How to Use the Light Ray Reflection Demonstrator

1. Position the demonstrator base firmly onto a level, flat laboratory table matrix.
2. Adjust the integrated stand tilt mechanism to secure comfortable visibility for the student group.
3. Place the magnetic plane mirror component squarely at the absolute center crosshair index of the circular dial.
4. Direct a narrow, concentrated light path from an external laser source along a selected angular coordinate line toward the mirror vertex.
5. Note the exit trajectory coordinates on the printed scale to compile your mathematical tracking sheet entries.

Safety Note: Avoid looking directly into the primary output apertures of any active laser modules utilized during alignment tasks to prevent localized eye strain or retinal irritation.

Care & Maintenance

• Cleaning: Wipe down the matte dial plate regularly with a dry, anti-static microfiber cloth; avoid heavy saturations of organic solvents like acetone or paint thinner.
• Storage: Keep the system components arranged flatly within a dry equipment cabinet away from corrosive moisture or extreme thermal concentrations.
• Handling: Hold all reflective elements carefully by their dark backing frames to keep natural skin oils from smudging the polished specular faces.

Why Choose Science Lab Supplies

Science Lab Supplies is a premier global manufacturer and trusted exporter of high-grade laboratory instruments and classroom experiment assemblies. Drawing on decades of technical production experience, we configure specialized educational equipment built to withstand the rigorous demands of daily academic use. Our operational plants maintain strict quality assurance procedures to guarantee true geometric alignment across all product lines. With our advanced international logistics channels, we efficiently manage safe bulk deliveries to universities, schools, and educational distribution agencies worldwide.

Frequently Asked Questions

How does the demonstrator show light paths clearly in normal room lighting?

The tracking panel features a texturized white matte diffusion layer that catches and scatters a small fraction of the grazing incident beam, making the ray line highly visible to students without dimming the room.

Are the included mirror shapes fragile?

No, all mirror elements are manufactured from vacuum-metallized optical acrylic polymer rather than traditional silicate glass, making them entirely shatterproof and student-safe.

Does the device require an internal electrical power supply?

No, the Light Ray Reflection Demonstrator functions entirely mechanically as a passive tracking layout that relies on external lasers or ray boxes to operate.

What is the smallest measurement mark on the circular dial?

The integrated protractor grid features clear, laser-etched markers down to 1-degree subdivisions, allowing for precise quantitative calculation adjustments.

Can I attach multi-line laser boxes to this panel structure?

Yes, the perimeter design features a universal mounting border that comfortably accommodates most educational three-beam or five-beam laser modules.
