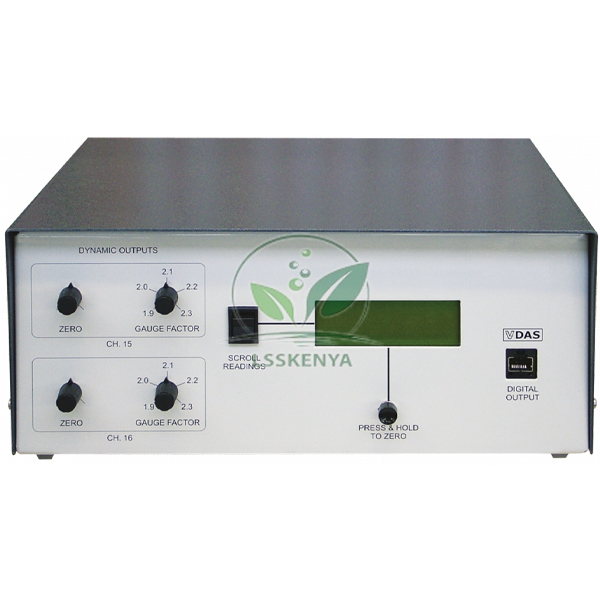

Digital Strain Display
Product Code : LSK-MTE-10512
Digital Strain Display (SKU LSK-MTE-10512) is a programmable strain indicator that accepts up to 16 channels from metal-foil strain gauges wired in quarter, half or full bridge and shows strain directly. It serves strength of materials and stress analysis labs in B.Tech, B.E. and diploma engineering courses. Science Lab Supplies manufactures this display in its own factory on Plot 448, HSIIDC Industrial Area, Saha, Ambala, India, and sells it directly to engineering colleges, schools, tender contractors and distributors.
Specifications
The unit is fully programmable to match the gauges and bridge connections in use. Two channels carry individually adjusted dynamic outputs for transient strain, and precision internal make-up resistors complete half-bridge circuits. Quarter-bridge work needs external make-up resistors or dummy gauges.
| Parameter | Value |
|---|---|
| SKU | LSK-MTE-10512 |
| Input channels | Up to 16 |
| Gauge type | Most metal-foil strain gauges |
| Bridge connections | Quarter, half and full bridge |
| Dynamic outputs | 2 channels, individually adjusted |
| Half-bridge completion | Internal precision make-up resistors |
| Connectors | Self-locking, crimped, no soldering |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Digital Strain Display
The display is used wherever a class must read strain from bonded gauges on beams, shafts, cylinders or test specimens. It suits strength of materials practicals in mechanical and civil engineering degrees and diplomas, experimental stress analysis electives, and final-year projects that measure strain on a student-built structure.
- B.Tech/B.E. strength of materials lab: beam bending strain versus theory.
- Stress analysis: quarter-, half- and full-bridge connections compared on one member.
- Diploma practicals: several gauges logged at once on one structure.
- Dynamic tests: transient strain sent to an oscilloscope or chart recorder.
Standard Scope of Supply
Each display comes with a reel of cable, connectors that fit its input sockets and a tool that crimps the connectors onto the cable, so no soldering is needed. Strain gauges, quarter-bridge make-up resistors or dummy gauges, and any oscilloscope or chart recorder are not included.
Packing, MOQ and Lead Time
Colleges buying test and measurement instruments in India can ask for a quotation on a single display or on several for a whole lab. Each quotation sets out the packing, delivery time and price for that quantity, and other engineering lab equipment in India from the same range can be priced alongside.
Holding an Importer-Exporter Code, Science Lab Supplies is able to ship to buyers in Malaysia, Peru, Egypt, Iraq, Nigeria and Kenya. The business is registered under Udyam as a manufacturing enterprise (UDYAM-HR-01-0014546) and for GST (GSTIN 06ADEPJ0574F2ZU). To begin, write through the contact page, add the display to the enquiry cart, or see the lab tender page for institutional orders.
Frequently Asked Questions
How many strain gauges can the Digital Strain Display read?
Up to 16 channels, each taking a gauge in quarter, half or full bridge. Because the unit is programmable to match its gauges and connections, a mixed set-up can be read from one display.
Do quarter-bridge gauges need extra parts?
Yes. Internal resistors complete half-bridge circuits, but a quarter-bridge connection needs suitable external make-up resistors or dummy gauges, which are not supplied.
Is Science Lab Supplies the manufacturer or a trader?
It is the manufacturer. The display is assembled at the company factory in Saha, Ambala, India, and every quotation you receive is issued by that factory directly.
Can the display record fast-changing strain?
Yes, through its two dynamic outputs, which connect to an oscilloscope or chart recorder for transient strain. The recording instrument is not supplied, so labs use their own.
Related Strain Measurement Equipment
These four Material Testing Equipment items share the display's strain-gauge theme: one provides gauges and bonding materials, two are loaded structures carrying their own gauges, and one studies beam bending with load cells. Together they make a strength of materials bench that fits on one enquiry.
- Thin Cylinder — aluminium cylinder with surface strain gauges, pressurised by hand pump.
- Strain Gauge Trainer — bending, torsion and tension structures with gauges.
- Strain Gauge Kit — resistance strain gauges with adhesive in a PVC case.
- Beam Apparatus — beam bending with three digital load cells.
