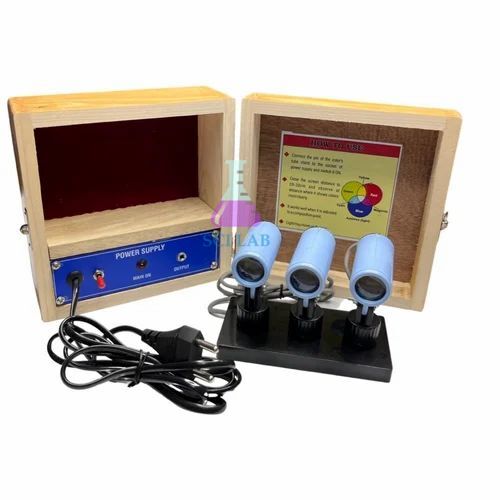

Colour Shadow Apparatus Optics Lab

Product Code : SCL-LAO-12081

The Colour Shadow Apparatus is a specialized optical laboratory instrument used for demonstrating additive color mixing and the formation of complementary colored shadows. Designed for physics educators and students, this apparatus provides a high-contrast visual platform to investigate how red, green, and blue primary light sources interact to produce secondary colors and distinct multi-colored shadows.

Product Description

This advanced optics tool offers an engaging approach to studying color theory and light behavior in secondary schools, colleges, and university science laboratories. Fabricated with a rigid, impact-resistant polymer chassis and independent electronic dimming controls, it enables users to seamlessly adjust the brightness of individual red, green, and blue light-emitting diodes (LEDs). The integrated design ensures steady light projection onto a non-glare projection screen, maintaining constant chromaticity without flickering.

For academic institutions seeking to update their collection of, this apparatus provides exceptional educational utility. It successfully bridges the gap between abstract human color perception and the concrete physics of light wavelengths. By changing the relative intensities of the driving light modules, students can observe real-time chromatic shifts, making this kit an enduring asset for general optics instruction and wave mechanics courses.

Key Features

• Independent Intensity Controls: Features three separate control knobs that enable precise, step-less adjustment of the red, green, and blue light channels.
• High-Lumen Solid-State LEDs: Utilizes ultra-bright, energy-efficient solid-state light engines to deliver crisp, clear projections even in partially illuminated classrooms.
• Non-Glare Matte Screen: Equipped with a textured white projection surface that scatters light isotropically to prevent specular reflection hot spots.
• Modular Shadow Obstacles: Supplied with interchangeable shadow rods and geometric shapes that slide into position smoothly for versatile pattern layouts.
• Rugged Component Housing: Encased in a ventilated, structural polymer frame that safely protects the internal electronic drivers from continuous classroom handling.

Technical Specifications

What's Included in the Kit

• 1 x Colour Shadow Apparatus main light source engine
• 1 x Detachable matte white projection screen board
• 3 x Varied geometric shadow-forming peg obstacles
• 1 x 9V DC universal power supply adapter
• 1 x Teacher lesson workbook with pre-configured color tracking templates

Applications / Uses

• Demonstrating additive color synthesis laws by combining primary light paths to verify trichromatic principles

• Investigating complementary shadow formations, showing how blocking a specific wavelength creates secondary color overlays like cyan, magenta, and yellow
• Enhancing interactive physics experiments when combined with versatile modular science education kits.

• Teaching digital display mechanics, human retinal photoreceptor functions, and lighting design principles in STEM workshops.

How to Use the Colour Shadow Apparatus

1. Position the Colour Shadow Apparatus housing firmly onto a level, flat laboratory table matrix.
2. Insert the detachable matte white projection screen completely into the rear base slots.
3. Plug the 9V DC mains adapter into the device barrel jack and flip the primary electrical switch.
4. Turn all three control knobs clockwise to maximize the output of the red, green, and blue LEDs until a unified white light field covers the screen.
5. Place a shadow rod obstacle into one of the central mounting holes located between the light engine and the screen.
6. Observe the resulting colored shadow arrays and vary individual light intensities manually to analyze color changes.

Safety Note: Avoid staring directly into the open LED light apertures at close proximity during continuous runtime cycles to prevent temporary visual spot distortion or eye fatigue.

Care & Maintenance

• Cleaning: Wipe down the polymer casing and white matte projection screen with a dry, anti-static microfiber cloth; do not apply liquid organic solvents or harsh glass cleaners.
• Storage: Unplug the power adapter after use and store the unit inside a cool, dry equipment cabinet away from direct solar radiation.
• Handling: Turn the intensity knobs smoothly within their natural rotation limits to preserve the mechanical calibration of the interior electronics.

Why Choose Science Lab Supplies

Science Lab Supplies is an established manufacturer and premier global exporter of reliable laboratory instruments and classroom experiment setups. With decades of technical production experience, we combine high-grade components with practical scientific layout principles to construct long-lasting educational systems. Our manufacturing facilities implement tight quality tracking benchmarks to guarantee accurate performance across every batch shipped. Backed by highly efficient international supply systems, we deliver exceptional didactic models to institutional clients across the globe safely and on time.

Frequently Asked Questions

How does this apparatus create colored shadows if the light is white?

When all three primary light sources are active, they combine to produce white light on the screen. Placing an obstacle in front of the board blocks one of the color paths, allowing the remaining two colors to blend and form a complementary colored shadow like cyan or magenta.

Can I adjust the brightness of each color individually?

Yes, the front panel features three independent control dials that give you complete command over the red, green, and blue light intensity channels.

Do the LED modules get hot during continuous classroom use?

No, the device uses modern, low-voltage solid-state LEDs housed within a ventilated polymer frame to ensure the apparatus remains cool and safe for students to handle.

Is the display shield breakable?

The projection screen is manufactured from structural, high-impact polymer rather than glass, making it highly drop-resistant and resilient against typical student wear.

Does this color mixing tool require separate batteries?

No, the unit arrives complete with a universal 9V DC mains power adapter that plugs into standard classroom electrical wall outlets.
