Base Station Kit
Product Code : LSK-CE-11325
Base Station Kit (SKU LSK-CE-11325) is a complete VHF base station kit on 136–174 MHz with 255 channels, adjustable 1–25 W output and narrow band FM, delivered with a fixed-mount 3 dB base station antenna, 30 m of RG213 coaxial cable, a PSU and a lightning arrestor. It suits the control room of a VHF network and radio training. Science Lab Supplies offers the kit from Ambala, India, quoting it for organisations, institutes, contractors and distributors.
Specifications
The table records the VHF base kit’s radio data, signalling features and components. In brief, it runs 1–25 W on 136–174 MHz with 255 narrow band FM channels, offers 5-tone selective signalling with emergency, lone worker and whisper functions, and ships with antenna, cable and arrestor.
| Specification | Value |
|---|---|
| SKU | LSK-CE-11325 |
| Type | Complete VHF base station radio kit |
| Frequency range | 136–174 MHz |
| Output power | 1–25 W (25 W maximum) |
| Channels | 255 |
| Modulation | Narrow band FM |
| Signalling | 5-tone selective signalling, selective calling, emergency calling |
| Control functions | Stun/un-stun, silent interrogate |
| Safety functions | Lone worker, emergency exit |
| Other functions | Phone patch, whisper mode |
| Radio unit | Radio with display and full keypad microphone |
| Mounting | Desktop tray |
| Power | PSU, power cables, fuse |
| Antenna | Fixed roof-mount 3 dB base station antenna |
| Antenna cable | 30 m RG213 coaxial cable |
| Protection | Lightning arrestor |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the VHF Base Station Kit
The kit turns a desk into a fixed VHF control point that calls mobile and portable users individually or in groups over narrow band FM. Its roof-mount 3 dB antenna on 30 m of RG213 cable lifts range, while stun, silent interrogate and lone-worker functions help a controller manage a fleet safely.
- Controlling vehicle radios such as the VHF Mobile Station Kit, which uses the same 5-tone selective signalling and narrow band FM.
- Diploma electronics and communication: VHF FM transmission, antenna gain and coaxial feeder practice.
- ITI Electronics Mechanic and telecom training on selective calling, phone patch and lightning protection.
- Site security, campus and project control rooms that need short-to-medium range group voice links.
Mount the antenna securely, earth the lightning arrestor properly and confirm licensing, since VHF base stations normally need a frequency licence. The PSU input rating is confirmed on the quotation.
Standard Scope of Supply

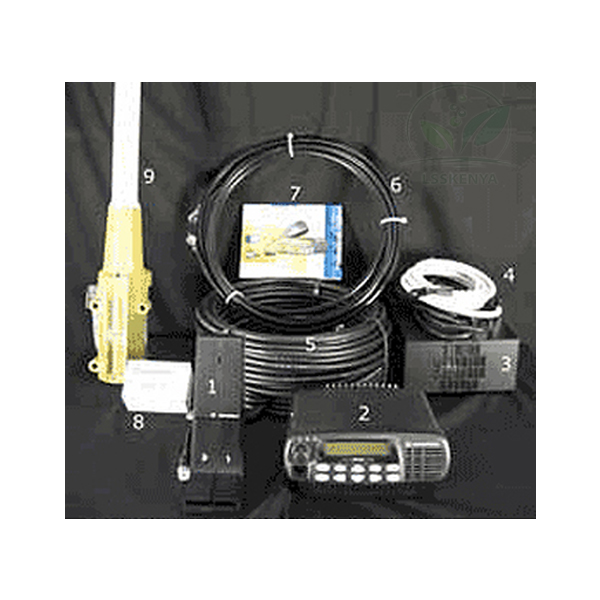

Each kit includes the radio with display and full keypad microphone, a desktop tray, the PSU, power cables and fuse, the fixed roof-mount antenna, 30 m of RG213 antenna cable and a lightning arrestor. Mobile and portable radios for the net can be added to the same quotation.
Packing, MOQ and Lead Time
A quotation can be raised for one base kit or for several control points. Science Lab Supplies states the packing, delivery time and price for that number of kits, and the matching mobile and portable radios can be priced together.
Holding an Importer-Exporter Code, Science Lab Supplies is able to ship to buyers in Vietnam, Malaysia, Peru, Egypt, Iraq and Nigeria. Share your channel plan via the contact page, gather the network in the enquiry cart, or check the lab tender page for formal procurement.
Frequently Asked Questions
What antenna and cable come with the kit?
The kit includes a fixed roof-mount 3 dB base station antenna and 30 m of RG213 coaxial cable, together with a lightning arrestor to protect the station from strikes on the antenna line.
What do stun and silent interrogate do?
Stun disables a lost or misused radio in the net and un-stun restores it, while silent interrogate checks whether a radio is switched on and in range without alerting its user.
Should we choose this kit or the HF Radio Base Kit?
This VHF kit covers 136–174 MHz for local and regional nets. The Radio Base Kit works on HF, 1.6–30 MHz at 125 W PEP, for longer-distance links; your coverage area decides.
Who supplies the Base Station Kit?
Science Lab Supplies, located in Ambala, India, is the supplier quoting this kit. One reply from its team prices the base, any mobile or portable radios and the freight to your country.
