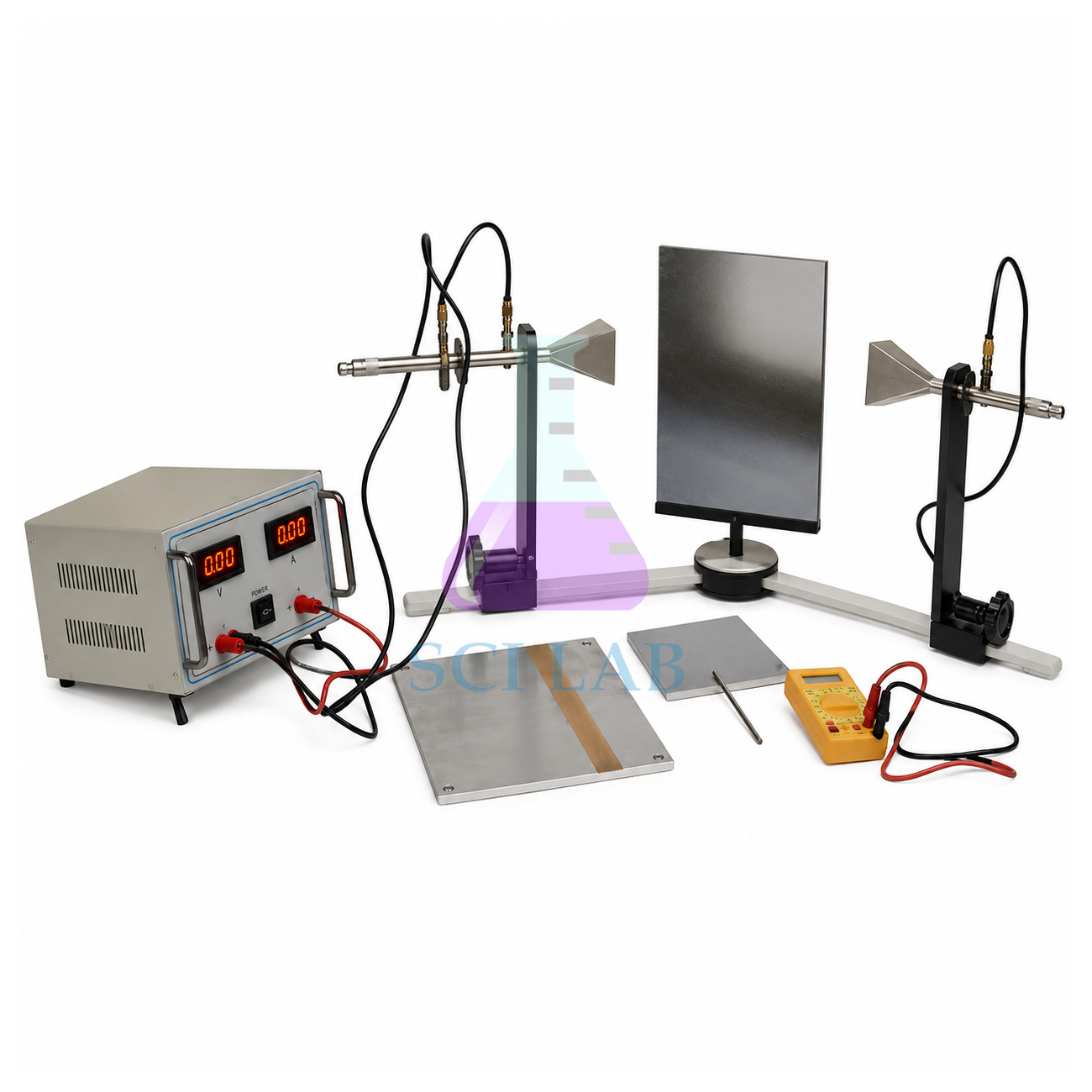

Apparatus for Demonstrating Reflection, Refraction, Polarization and Diffraction using Microwaves
Product Code : SCL-PL-11848
Apparatus for Demonstrating Reflection, Refraction, Polarization and Diffraction using Microwaves (SKU SCL-PL-11848) is a microwave optics set that lets students repeat the classic wave-optics experiments at a 2.8 cm wavelength, for senior secondary and undergraduate physics and electronics labs. The set is manufactured by Science Lab Supplies at Plot 448, HSIIDC Industrial Area, Saha, Ambala, India, which quotes it directly to schools, colleges, tender contractors and distributors.
Specifications
The transmitter houses a Gunn diode in a cylindrical case 83 mm across and 70 mm long, 225 mm long overall, and the receiver follows the same construction. A silicon-diode probe on a short non-metallic rod maps the field, while aluminium and acrylic mirrors and a mesh handle reflection and polarisation.
| Parameter | Value |
|---|---|
| SKU | SCL-PL-11848 |
| Transmitter | Gunn diode, 10.7 GHz (wavelength 2.8 cm) |
| Power and voltage | 30 W; (10–12) V to (2–3.5) V |
| Transmitter case | Cylindrical, 83 mm diameter x 70 mm; overall length 225 mm |
| Receiver | Similar in construction to the transmitter |
| Probe detector | Silicon microwave diode on a short vertical non-metallic rod; base with 4 sockets, 75 x 50 x 135 mm |
| Aluminium mirrors | 200 x 300 mm, 50 x 300 mm, 300 x 300 mm |
| Acrylic mirror | 300 x 300 mm |
| Polarising mesh | 190 x 300 mm |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Microwave Optics Apparatus
Because a 2.8 cm wavelength is large enough to handle with bench-sized mirrors and meshes, the apparatus lets students show that microwaves reflect, refract, polarise and diffract just as light does. It supports Class 12 electromagnetic-wave and wave-optics topics and B.Sc. or engineering microwave practicals.
- Class 12 physics: placing microwaves in the electromagnetic spectrum and measuring their wavelength.
- Law of reflection with the aluminium mirrors and polarisation with the mesh.
- Diffraction and standing-wave mapping with the probe detector and multimeter in B.Sc. and engineering labs.
Run the transmitter under teacher supervision and keep faces away from its aperture during experiments.
Standard Scope of Supply
The set includes the microwave transmitter, microwave receiver, probe detector with its socket base, a power source, a diode, a speaker, the three aluminium mirrors, the acrylic mirror, the polarising mesh, a digital multimeter and two BNC cables.
Packing, MOQ and Lead Time
Whether you need one set for a demonstration bench or several for a physics or electronics department, the quotation from Science Lab Supplies states packing, delivery time and price for that quantity. Related optics lab equipment for schools can join it.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies is able to ship to buyers in Zambia, Rwanda, South Africa, Qatar, Sri Lanka and Vietnam. The business is registered under Udyam as a manufacturing enterprise (UDYAM-HR-01-0014546) and for GST (GSTIN 06ADEPJ0574F2ZU). Send a request through the contact page, collect items in the enquiry cart, or read about bulk purchasing on the lab tender page.
Frequently Asked Questions
What frequency and wavelength does the transmitter use?
The Gunn diode transmitter works at 10.7 GHz, a wavelength of about 2.8 cm, which suits bench-scale experiments.
How is polarisation shown with microwaves?
The polarising mesh, 190 x 300 mm, is placed between transmitter and receiver and rotated; the received signal changes with the mesh angle.
Is Science Lab Supplies the manufacturer or a trader?
Science Lab Supplies manufactures this microwave set in its Saha, Ambala factory, and the quotation you receive comes straight from that factory rather than from an agent.
