DigitaL IC Trainer Electronics Lab

Product Code : SCL-EAE-12056

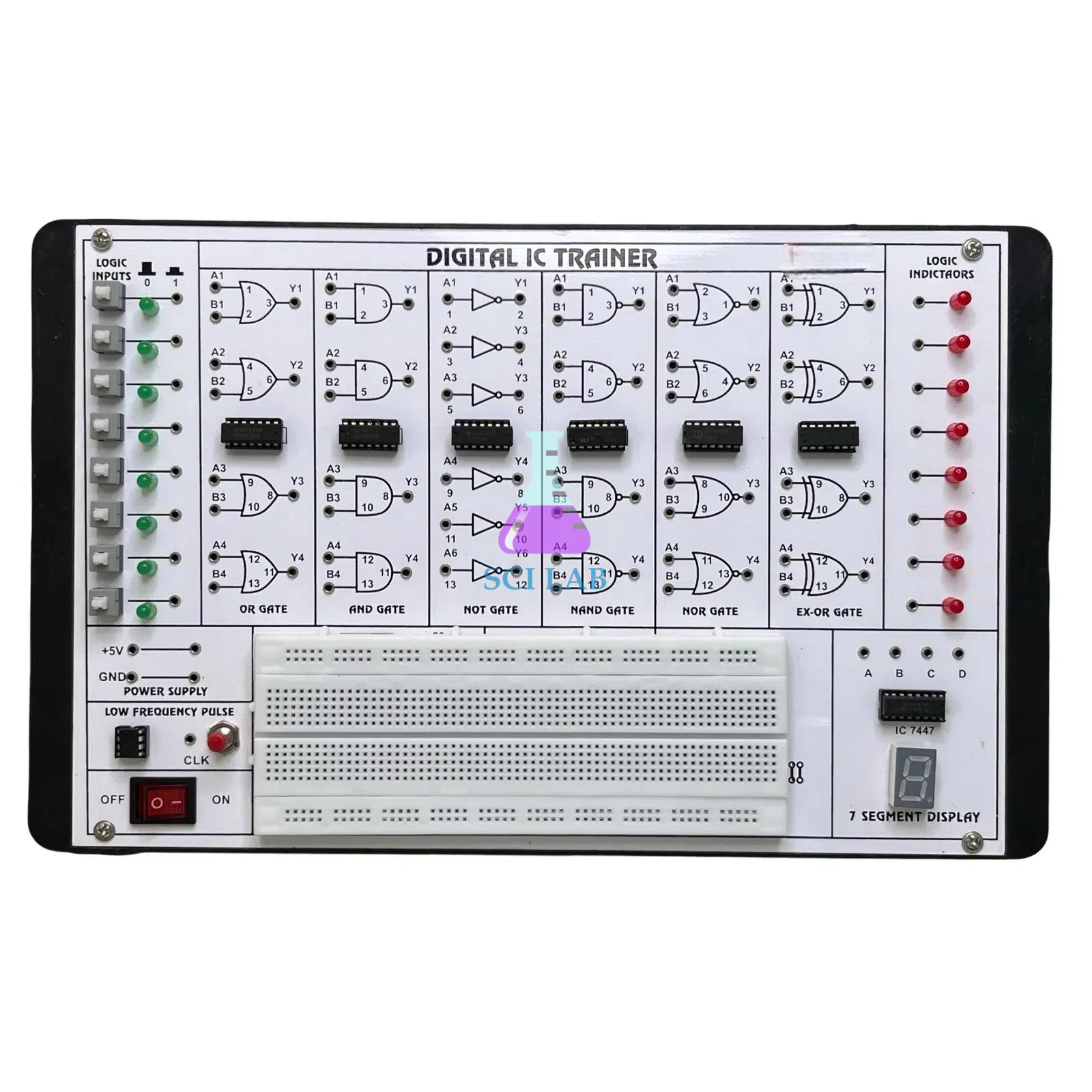

Digital IC Trainer Electronics Lab (SKU SCL-EAE-12056) is a self-contained bench unit for building and testing digital logic circuits. It serves digital electronics practicals in B.Sc. physics, diploma, B.Tech and vocational electronics labs. Science Lab Supplies manufactures the trainer at Plot 448, HSIIDC Industrial Area, Saha, Ambala, India, and supplies it direct to colleges, institutes, tender contractors and distributors.

Specifications

Every technical detail of the trainer is set out in the table below. In short, it combines 26 logic gates of six types, 8-bit logic inputs and outputs, a breadboard, a low-frequency mono pulser and a seven-segment decoder in a 12 x 8 inch ABS cabinet, powered by an IC-regulated +5 V DC, 250 mA supply.

Applications and Experiments for the Digital IC Trainer

Students wire the on-board gates, switches and display with 2 mm patch cords and compare the output states they observe with the expected truth tables. As a digital electronics trainer kit with its own supply and breadboard, it gives each group a complete powered bench unit for a first course in logic design.

• B.Sc. physics and electronics: verifying the truth tables of AND, OR, NOT, NAND, NOR and EX-OR gates, with output levels checked on a Digital Multimeter.
• Diploma and B.Tech: building combinational circuits on the breadboard and testing them through the 8-bit I/O.
• Pulse and switching studies driven by the low-frequency mono pulser.
• Seven-segment decoding exercises showing how binary inputs drive a numeric display.
• ITI and vocational electronics: assembly and fault-finding practice; for single-gate demonstrations see the Versatile 6-in-1 Logic Gate Apparatus.

Switch the trainer off before changing connections; it is mains-powered, so use it under supervision.

Standard Scope of Supply

Each set comprises the Digital IC Trainer main unit, a set of 2 mm patch cords and a user manual. Loose ICs are not included in the standard set; any ICs or meters you need can be listed on the same quotation.

Packing, MOQ and Lead Time

A quotation can be prepared for one trainer or for enough units to equip every bench in a digital electronics lab. It sets out the packing, delivery time and price for that quantity, and multimeters or other trainers can be added to it.

With an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Nigeria, Kenya, Ghana, Ethiopia, Tanzania and Uganda. The business is registered under Udyam as a manufacturing enterprise (UDYAM-HR-01-0014546) and for GST (GSTIN 06ADEPJ0574F2ZU). Send your list through the contact page or the enquiry cart, and see the lab tender page for tender supply.

Frequently Asked Questions

Which logic gates are on the trainer?
It carries six gate types: four OR, four AND, six NOT, four NAND, four NOR and four EX-OR gates, 26 in all, so a group can build and test combined logic circuits without fitting loose ICs.

What power does the trainer need?
It operates from 230 V, 50 Hz mains and has its own IC-regulated +5 V DC supply rated at 250 mA for the on-board logic, so no separate bench supply is needed for the standard experiments.

Are ICs included with the trainer?
The standard set holds the main unit, 2 mm patch cords and a user manual. Loose ICs are not part of it; name any ICs your syllabus needs in your enquiry and they can be quoted alongside.

Is Science Lab Supplies the manufacturer or a trader?
The trainer is manufactured by Science Lab Supplies itself, at its plant in Saha, Ambala, India. Buyers deal with the maker directly, and every quotation is issued by the factory rather than through an agent.
