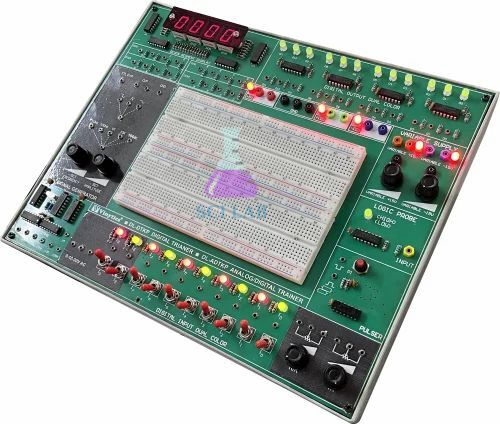

Analog & Logic Circuit Training Board
.jpg)
Product Code : SCL-EAE-12036
Analog & Logic Circuit Training Board (SKU SCL-EAE-12036) is a bench workstation for building and testing analog and digital IC circuits, combining regulated DC supplies, a function generator, logic switches, LED indicators, 7-segment displays and a solderless breadboard. It serves electronics practicals in polytechnics, engineering colleges and vocational centres. Science Lab Supplies manufactures it at Plot 448, HSIIDC Industrial Area, Saha, Ambala, India, and sells it directly to institutions, tender contractors and distributors.
Specifications
The table lists each specification. In short, the unit runs on 220–240 V AC with fixed ±5 V and ±15 V rails, variable 0 to ±15 V outputs, a 10 Hz to 100 kHz generator, eight logic switches and LEDs, two 7-segment displays and a 1660 tie-point breadboard.
| Specification | Value |
|---|---|
| SKU | SCL-EAE-12036 |
| Mains input | 220–240 V AC, 50 Hz, single phase |
| Fixed DC outputs | +5 V at 1 A; −5 V, +15 V and −15 V at 500 mA each |
| Variable DC outputs | 0 to +15 V and 0 to −15 V, continuously adjustable |
| Function generator waveforms | Sine, square and triangular |
| Generator frequency | 10 Hz to 100 kHz in 4 decades |
| Generator amplitude | 0 to 20 V peak-to-peak (open circuit) |
| Logic inputs | 8 toggle switches (TTL high/low) |
| Logic outputs | 8 buffered LED indicators |
| Displays | 2 BCD-to-7-segment decoder displays |
| Breadboard | 1660 tie-points in total |
| Terminal strips | 2 (1260 tie-points) |
| Distribution strips | 4 (400 tie-points) |
| Breadboard wire | 0.6 mm (22–26 AWG) solid core |
| Protection | Thermal overload and short-circuit fuses on outputs |
| Circuit boards | Glass epoxy PCB |
| Chassis | Powder-coated steel with impact-resistant side panels |
| Jumper wires supplied | Assorted pre-stripped 22 AWG single-strand |
| Power cable | Detachable AC mains cable |
| Manual | English instructor manual with wiring diagrams |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Analog and Logic Trainer
With power, signals and logic monitoring built in, students can wire an op-amp amplifier or counter on the breadboard and test it at once. It suits B.Tech, B.Sc. electronics, diploma and NSQF electronics trade practicals as a combined analog and digital electronics trainer kit.
- Digital logic: verifying gates, flip-flops, counters and shift registers with the eight switches and LED monitors.
- Linear circuits: building inverting and non-inverting op-amp amplifiers on the breadboard from the ±15 V rails.
- Waveform work: feeding sine, square or triangular signals into a circuit and viewing the output on an Oscilloscope.
- Measuring rail voltages and node potentials with a Digital Multimeter.
Standard Scope of Supply
Each unit is supplied with the trainer console, an assorted pack of pre-stripped 22 AWG single-strand jumper wires, a detachable AC mains power cable and an English instructor manual with wiring diagrams. ICs and test instruments are quoted separately when you need them.
Packing, MOQ and Lead Time
We quote for one workstation or a full electronics lab. Science Lab Supplies, a physics instruments supplier in India, states packing, delivery time and price for that quantity on every quotation, and oscilloscopes or multimeters can be added.
With an Importer-Exporter Code, Science Lab Supplies is able to ship to buyers in Ghana, Ethiopia, Tanzania, Uganda, the UAE and Saudi Arabia. The business is registered under Udyam as a manufacturing enterprise (UDYAM-HR-01-0014546) and for GST (GSTIN 06ADEPJ0574F2ZU). Request a quote via the contact page or enquiry cart, or see the lab tender page.
Frequently Asked Questions
Can it be used with both TTL and CMOS ICs?
Yes. The regulated +5 V rail suits standard TTL logic, while the variable DC outputs up to ±15 V can drive higher-voltage CMOS families. Check each IC's rated supply before connecting it.
What range does the function generator cover?
It produces sine, square and triangular waves from 10 Hz to 100 kHz across four decades, with an output amplitude adjustable from 0 to 20 V peak-to-peak at open circuit.
How does it differ from the Analog & Digital IC trainer Board kit?
The Analog & Digital IC trainer Board kit has 10 logic inputs, eight fixed frequencies from 1 Hz to 10 MHz and a 1280 tie-point breadboard; this board has eight switches, a 10 Hz to 100 kHz generator and 1660 tie-points.
Is Science Lab Supplies the manufacturer or a trader?
Science Lab Supplies is the manufacturer of this trainer. It is built at the company's factory in Saha, Ambala, India, and quotations come from the factory without any trading firm in between.
