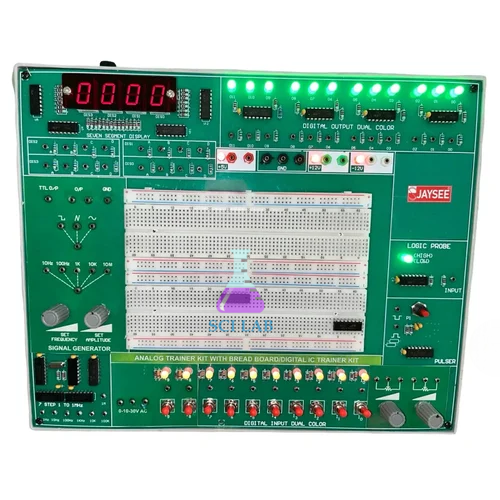

Analog & Digital IC trainer Board kit
.png)
Product Code : SCL-EAE-12054
Analog & Digital IC trainer Board kit (SKU SCL-EAE-12054) is an electronics training board for hands-on experiments with TTL and CMOS integrated circuits, covering digital logic, signal generation, counters, flip-flops and code converters on one platform. It is designed for students, teachers, engineering colleges, technical institutes, vocational centres and electronics laboratories. Science Lab Supplies manufactures the trainer at its factory at Plot 448, HSIIDC Industrial Area, Saha, Ambala, India, and sells it directly to institutions, tender contractors and distributors.
Specifications
All technical facilities are listed row by row below. In short, the trainer combines ten TTL/CMOS logic inputs with LED indicators, fixed signals from 1 Hz to 10 MHz, a sine, square and triangle generator, a logic probe, a four-digit display, a 1280 tie-point breadboard and built-in AC and DC supplies.
| Specification | Value |
|---|---|
| SKU | SCL-EAE-12054 |
| IC compatibility | TTL and CMOS |
| Logic inputs | 10 TTL/CMOS-compatible inputs |
| Input indicators | 10 dual-colour LEDs |
| Output indicators | 10 LEDs |
| Fixed signal frequencies | 1 Hz, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz, 1 MHz, 10 MHz |
| Function generator | Sine, square and triangular waveforms |
| Pulse facility | Single pulse by push-button switch |
| Logic probe | Indicates logic low, logic high and pulse |
| Display | Four-digit seven-segment |
| Breadboard | 1280 tie points, solderless |
| DC supplies | +5 V and ±12 V |
| AC supply | 0–10–30 V AC |
| Potentiometers | 1 kΩ and 100 kΩ |
| Accessories | ICs, patch cords, power cord and manual as listed on the quotation |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Analog and Digital IC Trainer
Students build circuits on the breadboard, drive them from the logic switches or signal outputs, and read the results on the LEDs, probe or display before comparing them with theory. The kit suits digital electronics practicals in B.Tech, diploma and B.Sc. electronics courses and in ITI and vocational electronics training.
- Logic gates and truth tables, moving on from the single-function Versatile 6-in-1 Logic Gate Apparatus to IC-based circuits.
- Half-adder, full-adder, parallel-adder, half-subtractor and code-conversion experiments.
- Flip-flops and counters, including binary up/down and Johnson counters, with waveforms viewed on an Oscilloscope.
- Oscillator circuits and breadboard prototyping, with supply voltages checked on a Digital Multimeter.
Switch the trainer off before inserting ICs or changing connections, and check IC orientation and supply polarity to avoid damaging components.
Standard Scope of Supply
The standard supply is the trainer board main unit with its built-in supplies, signal sources, display and breadboard. ICs, patch cords, a power cord and an experiment manual are listed item by item on the quotation, so the laboratory receives exactly the accessories it orders.
Packing, MOQ and Lead Time
A quotation can be issued for one trainer or for a set covering every bench in an electronics laboratory. Science Lab Supplies, a science apparatus manufacturer in India, details the packing, delivery time and price for that quantity, and further trainers or meters can be added to the same document.
Equipped with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Egypt, Iraq, Nigeria, Kenya, Ghana and Ethiopia. Submit a requirement through the contact page or enquiry cart; the lab tender page covers tender-based purchases.
Frequently Asked Questions
Which IC families can be used on this trainer?
The trainer is built for experiments with TTL and CMOS integrated circuits. Its ten logic inputs are compatible with both families, and the dual-colour LEDs show the logic level of each input.
What signal frequencies are available?
Eight fixed signals are provided at 1 Hz, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz, 1 MHz and 10 MHz, plus a function generator giving sine, square and triangular waveforms.
Does the trainer have built-in power supplies?
Yes. It provides +5 V and ±12 V DC supplies together with a 0–10–30 V AC supply, so most basic experiments need no separate bench power unit.
Who manufactures the IC trainer kit?
Science Lab Supplies, a physics instruments supplier in India with its own production unit, manufactures the trainer at its factory in Saha, Ambala, and every quotation is issued directly by the factory.
