Advance Research Microscope
Product Code : LSK-M-11364

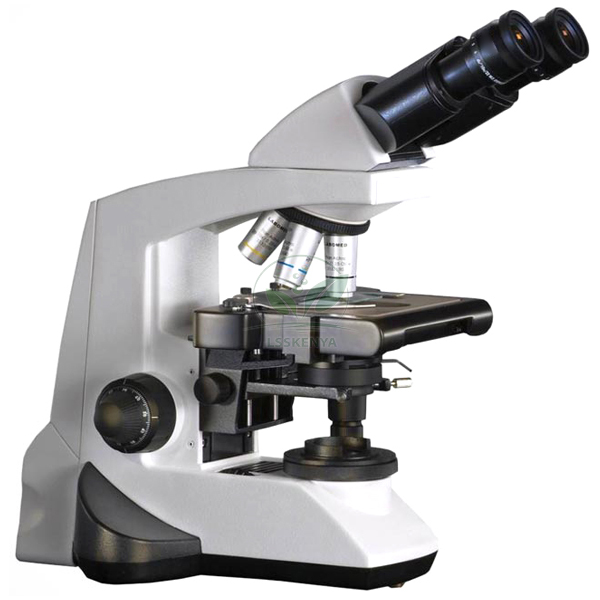

Advance Research Microscope (SKU LSK-M-11364) is a binocular compound microscope with four objectives up to 100X oil immersion, an NA 1.25 Abbe condenser and halogen lighting, intended for detailed slide work. It suits college, university and research laboratories studying cells, tissues and microorganisms. Science Lab Supplies sources it in Ambala, India, and quotes it to colleges, laboratories, training institutes and tender contractors.
Specifications
The research model's full specification is set out below. In short, a quadruple backward nosepiece carries 4X, 10X, 40X(S) and 100X(S, oil) objectives, viewed through WF10X or P16X eyepieces on a binocular head, with a 140 x 140 mm mechanical stage and a 220V/6V 20W halogen lamp.
| Specification | Value |
|---|---|
| SKU | LSK-M-11364 |
| Viewing head | Binocular head |
| Eyepieces | WF10X, P16X |
| Objectives | 4X, 10X, 40X (S), 100X (S, oil) |
| Magnification range | 40x (4X with WF10X) to 1600x (100X with P16X) |
| Nosepiece | Quadruple, backward-facing for a large operating space |
| Stage | Mechanical stage, 140 x 140 mm |
| Stage travel | 75 x 50 mm |
| Slide holder | Dual slide fingers for comparing two slides |
| Condenser | Abbe, NA 1.25 |
| Illumination | Halogen lamp, 220V/6V 20W |
| Focusing | Precise focusing system |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Advance Research Microscope
With an oil-immersion 100X objective and a high-aperture condenser, the microscope can resolve bacteria, blood cells and fine tissue detail. The backward nosepiece leaves room to change slides, and the dual slide fingers make side-by-side comparisons quicker. It fits undergraduate and postgraduate life-science practicals and laboratory instruments in India for research benches.
- B.Sc. and M.Sc. microbiology: viewing stained bacteria under the 100X oil objective, protected by a Cover Glass Slide.
- Histology and cytology: studying stained tissue sections and cell structure at 400x and above.
- Class 11–12 biology: mitosis in root-tip squashes and comparison of plant and animal cells.
- Measurement work: calibrating eyepiece readings against a Micrometric Slide.
Standard Scope of Supply
The microscope is supplied with its binocular head, WF10X and P16X eyepieces, the quadruple nosepiece fitted with 4X, 10X, 40X(S) and 100X(S, oil) objectives, the mechanical stage with dual slide fingers, the NA 1.25 Abbe condenser and the built-in halogen lamp. Any optional accessories are listed on the quotation.
Packing, MOQ and Lead Time
Pricing can be requested for a single research microscope or for a set of matching units for a teaching laboratory. Science Lab Supplies sets out packing, delivery time and price for the requested quantity on every quotation, and slides, cover glasses or stains can be added as extra lines.
Holding an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Zambia, Rwanda, South Africa, Qatar, Sri Lanka and Vietnam. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). Send your requirement via the contact page or the enquiry cart; buyers preparing a tender can use the lab tender page.
Frequently Asked Questions
What is the highest magnification of this microscope?
The 100X oil-immersion objective combined with the P16X eyepiece gives 1600x, and with the WF10X eyepiece it gives 1000x. The lowest setting, the 4X objective with WF10X, gives 40x for scanning a slide.
What are the dual slide fingers for?
The mechanical stage holds two slides at once with its dual slide fingers, so a reference slide and a test slide can be compared without removing either. The stage measures 140 x 140 mm with 75 x 50 mm of travel.
Does the 100X objective need immersion oil?
Yes. The 100X objective is an oil-immersion type, so a drop of immersion oil is placed between the cover glass and the lens. Clean the front lens with lens tissue after each session.
Who supplies the Advance Research Microscope?
This model is quoted by Science Lab Supplies from Ambala, India. The team handles enquiries from colleges, research laboratories and distributors and confirms the configuration, packing and dispatch terms in writing before an order goes ahead.
