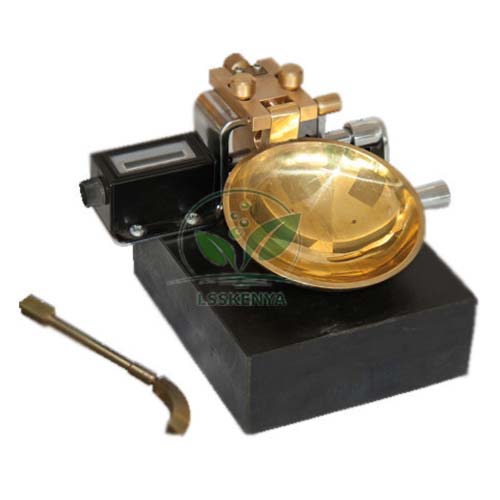

Hand Operated Casagrande Equipment
Product Code : LSK-SM-10650
Hand Operated Casagrande Equipment (SKU LSK-SM-10650), the classic liquid limit device, finds the water content at which a soil changes from plastic to liquid behaviour. A groove cut in a soil pat in a brass cup is closed by repeated drops, turned by hand and counted. Civil engineering students in colleges, polytechnics and TVET institutes use it in soil classification practicals. Institutes, colleges, tender contractors and distributors can source it from Science Lab Supplies, which dispatches orders from Ambala, India.
Specifications
Each element of the hand-cranked liquid limit device is given its own row in the table. In short, a brass cup hangs from a carriage that controls its fall to exactly 1 cm onto a hard rubber base, a rear nut adjusts the drop, a counter records the blows, and rubber feet isolate the base.
| Specification | Value |
|---|---|
| SKU | LSK-SM-10650 |
| Test | Liquid limit of soil |
| Cup | Brass |
| Cup mounting | Suspended from a carriage that controls its drop |
| Height of drop | Exactly 1 cm |
| Drop adjustment | Nut at the rear of the cup |
| Base | Hard rubber |
| Feet | Rubber, isolate the base from the work surface |
| Operation | Hand operated |
| Counter | Records the number of drops |
| Grooving tool | Casagrande grooving tool |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Casagrande Equipment
The device determines the liquid limit, one of the Atterberg limits which, with the plastic limit, gives the plasticity index used to classify fine-grained soils. It is a routine practical in soil mechanics and geotechnical courses and in labs testing soils for roads and foundations.
- B.E./B.Tech civil engineering: liquid limit by the Casagrande method, plotting the flow curve.
- Diploma civil engineering: Atterberg limits and plasticity index practicals.
- TVET civil engineering technician modules: soil classification for construction.
Mix the soil paste with a metal Spatula, weigh each moisture sample on a Triple Beam Balance 610g, and check and reset the drop with the rear nut before each session, keeping the cup and rubber base clean and dry so that every blow is consistent.
Standard Scope of Supply
The device comes with its brass cup and carriage, the hard rubber base on rubber feet, the hand-operated drive with counter, and a Casagrande grooving tool. Mixing dishes, spatulas and moisture tins, which the test also uses, can be added to the same quotation if needed.
Packing, MOQ and Lead Time
One device or a class quantity can be quoted, and the quotation states packing, delivery time and price for that number. As a TVET lab equipment supplier, Science Lab Supplies can put the plastic limit and shrinkage limit items for a full Atterberg bench on the same quotation.
Science Lab Supplies, a registered exporter with an Importer-Exporter Code, can ship to buyers in Ghana, Ethiopia, Tanzania, Uganda, the UAE and Saudi Arabia. A soil lab equipping an Atterberg bench can raise the device count on the contact page, gather the limit-test items in the enquiry cart, or look at the lab tender page for tendered orders.
Frequently Asked Questions
What does the Casagrande equipment measure?
The liquid limit of soil: the water content at which a groove cut in the soil pat closes after a set number of cup drops. Combined with the plastic limit it gives the plasticity index.
How is the height of drop set?
The carriage lets the brass cup fall 1 cm onto the hard rubber base. The height is adjusted with the nut at the rear of the cup and should be checked before testing.
Is there a motorised version?
Yes. This model is turned by hand with a counter recording the drops; a motorised liquid limit device is listed separately for labs that prefer a motor drive.
Who supplies the Hand Operated Casagrande Equipment?
Science Lab Supplies supplies this device out of Ambala, India. Colleges, training institutes, contractors and distributors deal with it directly and receive a quotation that can also carry the other Atterberg limit apparatus.
Related Atterberg Limit and Soil Classification Equipment
The liquid limit is one of three consistency limits normally tested together. These Soil Mechanics items complete an Atterberg limits bench with an alternative liquid limit method, the plastic and shrinkage limit tests, drying and field classification aids, all on one quotation.
- Motorised Casangarnde Equipment — spun brass cup lifted by a self-lubricating plastic cam and a 220 V gear motor.
- Cone Penetrometer — liquid limit read at 25 mm penetration under a 148 g sliding weight.
- Plastic Limit Set — 3 mm x 150 mm rod and a 20 x 15 cm glass plate with one frosted side.
- Plastic Limit Roller — roller plates separated by 3.2 mm side rails, with a 50-sheet pad of adhesive paper.
- Shrinkage Limit Set — 25 ml x 0.5 ml glass cylinder and porcelain evaporating dish; mercury not included.
- Prong Plate — acrylic plate with three rust-resistant metal prongs for immersing a soil pat.
- Laboratory Bench Oven — PID-controlled 220-litre oven for drying moisture samples.
- Geotechnical Gauge — water-resistant card for classifying clays from very soft to hard.
