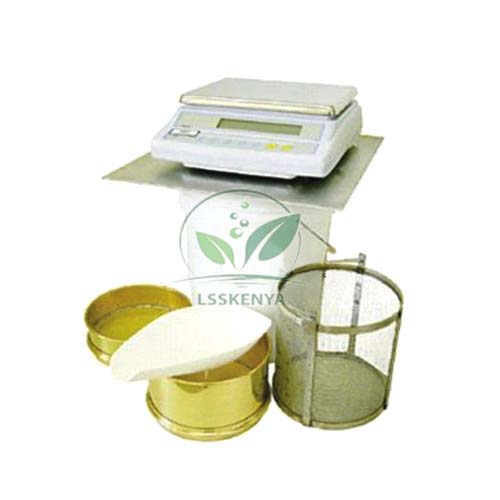

Dunagan Test Set
Product Code : LSK-CL-10591
Dunagan Test Set (SKU LSK-CL-10591) is a portable kit for analysing the constituents of fresh concrete and for testing the specific gravity, absorption and silt content of fine and coarse aggregates. The balance, weights, buckets, basket and sieves all pack into one galvanised steel case, so the test can be run on site or in the lab. Colleges, training institutes, tender contractors and distributors can have the kit priced and shipped by Science Lab Supplies from Ambala, India.
Specifications
Balance, weights, containers and sieves of the Dunagan set each get their own row. In short, a 5 kg balance with a 2,000 g brass weight set and 1 kg slotted weights works with immersion and soaking buckets, an overflow container and a 203 x 203 mm wire-mesh basket, while two 8 inch sieves separate the fractions.
| Specification | Value |
|---|---|
| SKU | LSK-CL-10591 |
| Aggregate tests | Specific gravity and absorption of fine and coarse aggregates |
| Other tests | Silt determination; constituents of fresh concrete |
| Balance | 5 kg capacity |
| Weight set | 2,000 g, brass |
| Slotted weights | 1 kg slotted type |
| Scoops | Set of three, for weighing |
| Buckets | Immersion and soaking buckets with handles |
| Overflow container | Water overflow container |
| Density basket | 203 mm diameter x 203 mm deep, reinforced No. 8 wire mesh |
| Sieve, No. 4 mesh | 203 mm (8 inch) diameter, 102 mm (4 inch) high |
| Sieve, No. 100 mesh | 203 mm (8 inch) diameter, standard height |
| Case | Galvanised steel with cover and carrying handles |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Dunagan Test Set
The Dunagan method separates a fresh concrete sample by washing and weighing it in water, giving an estimate of how much cement, fine aggregate and coarse aggregate the mix contains. The same set measures aggregate specific gravity, absorption and silt, so it serves concrete technology practicals and site quality-control training.
- B.Tech / B.E. civil engineering: checking the proportions of a fresh mix from the Laboratory Concrete Mixer.
- Diploma civil engineering: specific gravity and absorption of fine and coarse aggregate.
- Silt determination in sand used for concrete.
- TVET site-supervision and quality-control courses: field checks alongside the Slump Test Apparatus.
Standard Scope of Supply
The set comprises the 5 kg balance, 2,000 g brass weight set, 1 kg slotted weights, three scoops, immersion and soaking buckets, a water overflow container, the wire-mesh density basket, No. 4 and No. 100 sieves, and the galvanised steel case with cover and carrying handles.
Packing, MOQ and Lead Time
You may ask for a quotation for one set or for several teams, and it will give the packing, delivery time and price for that number. Companion vocational training equipment, such as the slump apparatus, can be priced on the same quotation.
Science Lab Supplies is a registered exporter holding an Importer-Exporter Code, so it can ship to buyers in the Philippines, Nepal, Bangladesh, Zambia, Rwanda and South Africa. Field-kit questions are welcome on the contact page; add the set to the enquiry cart for a combined quotation, or refer to the lab tender page if you are preparing a tender.
Frequently Asked Questions
What is the Dunagan Test Set used for?
It is used to estimate the constituents of fresh concrete and to test the specific gravity, absorption and silt content of fine and coarse aggregates, all with one portable set.
Which sieves are included?
Two 203 mm (8 inch) sieves: a No. 4 mesh sieve 102 mm high and a No. 100 mesh sieve of standard height. Together they separate the coarse, fine and silt fractions of a washed sample.
Is the set portable?
Yes. The components pack into a galvanised steel case with a cover and carrying handles, which makes it practical for site as well as laboratory use.
Who supplies the Dunagan Test Set?
Science Lab Supplies is the source for this set, supplying it from Ambala, India. Engineering colleges and training institutes receive quotations directly; tender contractors and distributors can request them for their own bids or customers.
Related Concrete, Aggregate and Soil Testing Equipment
The Dunagan analysis sits between mixing fresh concrete and testing aggregates and fines. These items from the Concrete Laboratory, Soil Mechanics and Balances and Scales ranges cover the aggregate, drying, strength, weighing and fines tests that accompany it in a course.
- Coarse Aggregate Density Test Set — buoyancy balance on 220 V AC, 50/60 Hz, with a suspension hook for the basket.
- Organic Impurities Test Set — upgraded five-colour reference chart for reading the 24-hour result.
- Sample Splitters (Riffle Boxes) — offered in painted steel or stainless steel.
- Drying Oven — blower-fan hot air circulation and a door with a transparent thermal glass window.
- Motorized Compression/Tension Machine — 280 mm span between columns and 0.01 kN tensile divisions.
- Weighing Scale 6000g — four weighing units, a hold function and full-range tare.
- Particle Size Analysis Test Set — stainless steel tank for 8 hydrometer jars, ambient to 60 °C.
Browse the full Concrete Laboratory range, the Soil Mechanics range for particle-size and fines apparatus, or all TVET lab equipment.
