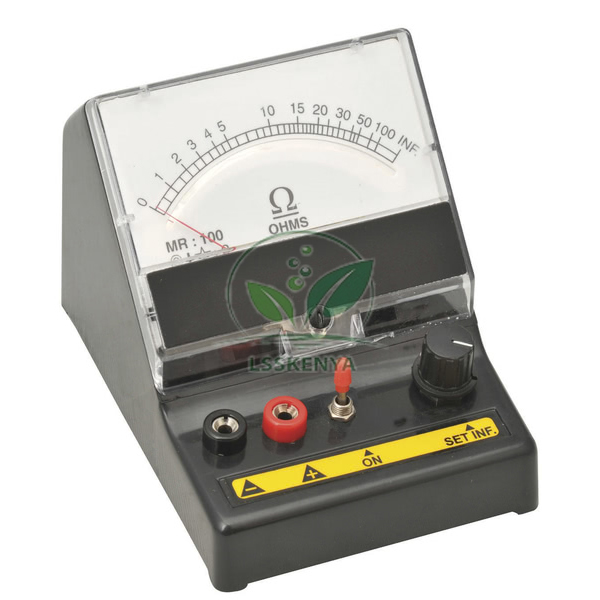

Ohmmeter Series Type 0-100 ohms
Product Code : LSK-PL-10344
Ohmmeter Series Type 0-100 ohms (SKU LSK-PL-10344) is a direct-reading instrument for measuring resistance in electric circuits over a 0–100 Ω range. Its dry battery cell is fixed to the stand from the underside, and the meter is housed in an unbreakable case with a clear front cover. It suits school physics, ITI and diploma electrical labs. This series-type meter is manufactured in the Science Lab Supplies factory at Plot 448, HSIIDC Industrial Area, Saha, Ambala, India, which prices it directly for schools, colleges, tender contractors and distributors.
Specifications
Range, cell position and housing of the 0–100 Ω series ohmmeter each take a row below. In short, the resistance under test is connected in series with the internal dry cell and the indicator, so the reading falls as resistance rises; the case is unbreakable with a clear front cover over the scale.
| Specification | Value |
|---|---|
| SKU | LSK-PL-10344 |
| Type | Series-type ohmmeter |
| Range | 0–100 Ω |
| Cell | Dry battery cell |
| Cell position | Fixed to the stand from the bottom side |
| Housing | Unbreakable case |
| Front | Clear front cover |
| Use | Measuring resistance in electric circuits |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Series-Type Ohmmeter
With this meter, students can read resistances directly instead of calculating them from voltmeter and ammeter readings. The 0–100 ohm range suits resistors, wire lengths and lamp filaments met in school circuits, and the series design is itself a topic in electrical measurement courses using physics lab equipment in India.
- NCERT Class 10 science, electricity: resistance of conductors and resistors in series and parallel, connected quickly with Connecting Leads with Alligator Clips.
- Class 12 physics, current electricity: checking resistor values before Ohm’s law practicals.
- Resistance against length, cross-section and material, using the wires of the Resistance Dependence Apparatus.
- ITI Electrician trade and diploma electrical measurements: principle and scale of the series ohmmeter.
Standard Scope of Supply
The Ohmmeter Series Type 0-100 ohms is supplied as a single unit as described above: the meter in its unbreakable case with clear front cover, on its stand with the cell position underneath. Connecting leads or resistance boxes can be added to the quotation if requested.
Packing, MOQ and Lead Time
You can ask us to quote a single ohmmeter or enough for every bench in an electricity lab. Each quotation shows packing, delivery time and price for the quantity, and resistance boxes, galvanometers or multimeters can be priced on the same page.
As an IEC-registered exporter, Science Lab Supplies can ship to buyers in Tanzania, Uganda, the UAE, Saudi Arabia, Oman and the Philippines. The business is registered under Udyam as a manufacturing enterprise (UDYAM-HR-01-0014546) and for GST (GSTIN 06ADEPJ0574F2ZU). Meter counts and delivery details can be passed on through the contact page or listed in the enquiry cart; bid documents and tender queries belong on the lab tender page.
Frequently Asked Questions
What does series type mean on this ohmmeter?
In a series-type ohmmeter the unknown resistance is placed in series with the internal cell and the indicator. Zero resistance gives full-scale deflection, and the reading moves back across the scale as resistance increases.
What range does the Ohmmeter Series Type cover?
It measures from 0 to 100 ohms, which covers the low-value resistors, wires and lamps met in school and ITI electricity practicals. Higher values can be read on a meter with a wider range.
How is the meter protected on the bench?
It is housed in an unbreakable case with a clear front cover, so the scale stays visible while the instrument is protected from knocks during student use.
Is Science Lab Supplies the manufacturer or a reseller?
This ohmmeter is a factory product, built with its 0–100 Ω scale and unbreakable case at the company’s own plant in Saha, Ambala, India, and your quotation is issued directly by that manufacturing unit.
Related Resistance Measurement Equipment
The Physics Lab, Lab Meters and Electrical and Electronics items below complete a resistance bench: two further ohmmeters, known resistances to check the meter against, resistor elements for circuits and a multimeter for voltage and current as well. All of them can be added to one quotation.
- Ohm Meter — ABS-cased meter run on a 1.5 V AA cell, 100 x 100 x 140 mm.
- Digital Ohmmeter 20KΩ — checks resistance values up to 20 kΩ.
- Resistance Box — resistance dialled up in decades, with 4 mm spin-free terminals.
- Resistance Substitution Box — 12 resistors at 5% tolerance, selected by a rotary switch.
- Decade Resistance Box, Dial Type — metal-film decades in two, three or four dials, for AC or DC.
- Resistor Element Set with Holders/Clamps — 1, 2, 10, 100 Ω and 1 kΩ metal film resistors.
- Digital Multimeter — resistance from 200 Ω to 2000 kΩ plus voltage and current ranges.
