Bimetallic Strip
Product Code : LSK-PL-10342

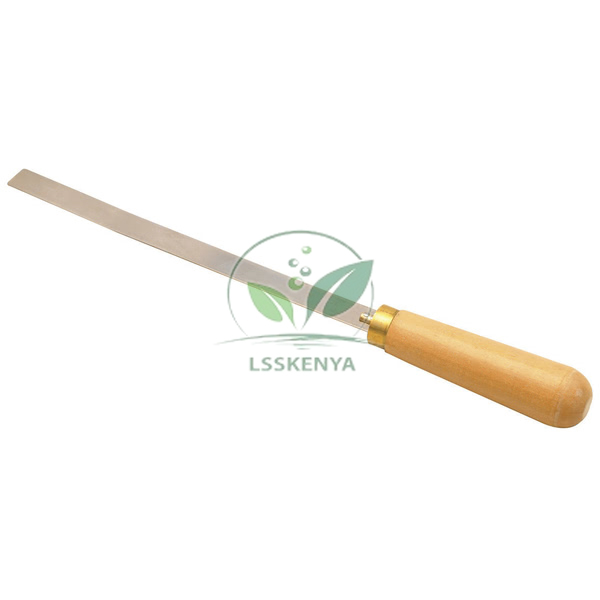

Bimetallic Strip (SKU LSK-PL-10342) is a 200 x 15 mm strip of brass and steel riveted together and set in a wooden handle. Held in a flame, it curls because brass expands more than steel, giving a clear picture of differential thermal expansion. It suits school and college heat lessons and can be used to explain thermostats. Science Lab Supplies rivets and mounts every strip at its Saha, Ambala factory (Plot 448, HSIIDC Industrial Area), the manufacturing base that quotes schools, colleges, tender contractors and distributors.
Specifications
Every dimension and material of the brass-steel strip appears in the rows below. In short, two metal strips, one brass and one steel, are joined face to face with heat-resistant rivets so they cannot slide over each other, and the 200 x 15 mm strip sits in a well-finished wooden handle for holding over a flame.
| Specification | Value |
|---|---|
| SKU | LSK-PL-10342 |
| Metals | Brass and steel |
| Strip length | 200 mm |
| Strip width | 15 mm |
| Joining | Riveted with heat-resistant rivets |
| Handle | Well-finished wooden handle |
| Heating | In a flame |
| Demonstrates | Differential expansion of two metals, by the curvature produced on heating |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Bimetallic Strip
When heated, the brass side lengthens more than the steel side, so the strip bends with brass on the outside of the curve; on cooling it straightens again. This one demonstration introduces thermal expansion, different expansion rates and how thermostats and fire alarms switch, as heat and thermodynamics lab equipment.
- Middle-school science: solids expand when heated.
- NCERT Class 11 physics, thermal properties of matter: linear expansion and different expansion coefficients, compared rod by rod on the metal Pyrometer with its three test rods.
- Applications of bimetallic strips in thermostats, flashers and fire alarms.
- Diploma and ITI electrical trades: the principle behind thermal switches.
Heating is done in an open flame, so the demonstration should be carried out by a teacher or under supervision, and the metal should be allowed to cool before it is touched.
Standard Scope of Supply
Each Bimetallic Strip comes as one item: the riveted 200 x 15 mm brass and steel strip fixed in its wooden handle. A burner or spirit lamp to provide the flame can be added as a separate line on the quotation if your laboratory needs one for the demonstration.
Packing, MOQ and Lead Time
Strips can be quoted singly for a teacher’s demonstration or in quantity so every bench has one. The quotation you receive states packing, delivery time and price for that number, and other thermal-expansion and conduction items, or a flame source, can be priced alongside on the same document.
Science Lab Supplies is registered with an Importer-Exporter Code, so it can ship to buyers in Ghana, Ethiopia, Tanzania, Uganda, the UAE and Saudi Arabia. Send the number of strips you need through the contact page or place them in the enquiry cart; for a school-board or government bid, the lab tender page is the starting point.
Frequently Asked Questions
Which way does the Bimetallic Strip bend when heated?
Towards the steel side. Brass expands more than steel for the same rise in temperature, so the brass ends up on the outside of the curve, and the strip straightens again as it cools.
How is the strip heated?
It is held by its wooden handle in a flame, for example from a Bunsen Burner (Pack of Two). Carry this out under supervision and let the strip cool before touching the metal.
What size is the strip?
The brass and steel strip measures 200 x 15 mm. The two metals are joined with heat-resistant rivets and the strip is mounted in a wooden handle for holding over the flame.
Is Science Lab Supplies the manufacturer?
Yes. The strip is cut, riveted and fitted to its handle in the company’s own factory at Saha, Ambala, and buyers receive their quotation from that factory itself, not from a reseller.
