Resistance Coil 1 Ohm

Product Code : SCL-AM-12115

The Resistance Coil 1 Ohm is a precision electrical resistor wrapped non-inductively on an insulated spool used for electrical measurements and circuit verification in physics laboratories. Designed for science educators, students, and technicians, this coil provides a stable, known resistance value to ensure accurate calculations during electromagnetism studies.

Product Description

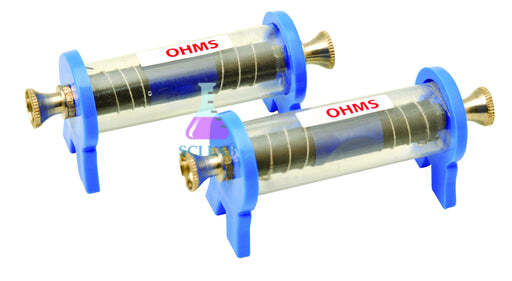

The Resistance Coil 1 Ohm from Science Lab Supplies is engineered using high-grade Manganin wire wound on a durable, heat-resistant bobbin. Manganin is selected for its extremely low temperature coefficient of resistance, ensuring the component maintains its nominal 1 Ohm rating even when slight thermal variations occur during continuous circuit operations. The entire winding assembly is enclosed inside a protective transparent protective case that shields the wire from physical damage while allowing students to view the internal non-inductive winding technique.

This reliable component serves as a foundational building block for introductory electronics and physics curricula. By providing a clear, physical representation of standard resistance, it helps students transition from schematic circuit diagrams to practical, hands-on setups. The coil easily integrates with standard physics lab equipment arrays, bridging the gap between theoretical calculations and tangible observations.

Key Features

• Premium Manganin Conductor: Minimizes changes in electrical resistance caused by heat generation during active classroom experiments.
• Non-Inductive Winding Method: Features wire doubled back on itself before winding to cancel parasitic self-inductance for cleaner DC and AC measurements.
• Clear Protective Enclosure: Transparent outer cylindrical housing safeguards the wire from debris while showcasing internal engineering.
• Standard 4mm Binding Posts: Equipped with robust, color-coded terminals that accept banana plugs, alligator clips, or bare hookup wires.
• ±1% Tolerance Accuracy: Calibrated precisely to provide dependable, highly repeatable values for standard laboratory equations.
• Compact Form Factor: Small benchtop footprint permits neat integration into dense experimental circuit layouts.

Technical Specifications

What's Included in the Kit

• 1 x Resistance Coil 1 Ohm unit with integrated binding posts
• 1 x Technical data sheet with temperature coefficient profiles

Applications / Uses

• Verifying linear relationships between voltage and current during the standard Ohm's Law experiment.
• Serving as a known standard resistor component in Wheatstone bridge and potentiometer balancing networks.
• Configuring parallel and series circuit configurations to track cumulative equivalent resistance changes.
• Calibrating current sensitivities across custom digital and analog electrical instruments.
• Replenishing institutional consumables stock within modular student physics laboratory consumables inventories.

How to Use the Resistance Coil 1 Ohm

1. Inspect the Terminals: Check both 4mm binding posts to verify they are clean and free from oxidation before circuit insertion.
2. Connect the Leads: Insert standard banana plugs or thread bare copper hookup wire through the transverse terminal holes, tightening the terminal caps securely.
3. Integrate into Circuit: Connect the coil in series with a low-voltage DC power supply, an ammeter, and a switch to form your primary circuit loop.
4. Apply Voltage: Switch on the power supply and deliver a low electrical potential across the loop, keeping current well within safe operating ranges.
5. Calculate Parameters: Use a voltmeter connected in parallel across the terminals to record drop values, then verify the exact 1 Ohm baseline value using the standard formula:

$$R = \frac{V}{I}$$

Safety Note: Do not exceed the maximum power rating of the component. Avoid applying high voltage or sustained high currents, as over-current will generate excessive thermal energy and can permanently alter the accuracy of the alloy wire.

Care & Maintenance

• Avoid Moisture Contact: Keep the unit dry and clear of liquid chemicals to prevent corrosion along the internal junctions and external terminals.
• Store in Low Humidity: Keep the coil inside a dry cabinet alongside other companion laboratory instruments to optimize component longevity.
• Prevent Physical Shock: Avoid dropping the component onto solid concrete floors to preserve the precise alignment of the internal structural bobbins.

Why Choose Science Lab Supplies

Science Lab Supplies is a premier manufacturer and global exporter of robust scientific laboratory instruments, didactic models, and STEM training modules. Backed by extensive manufacturing experience, we supply educational systems in dozens of countries with curriculum-aligned physics apparatus. Our advanced engineering processes enforce strict material selection and calibration standards, ensuring uniform electrical traits across all product batches. We offer scalable distribution models to efficiently fulfill large institutional tenders and independent wholesale distributor orders worldwide.

Frequently Asked Questions

What does non-inductive winding mean on a Resistance Coil 1 Ohm?

Non-inductive winding means the Manganin wire is doubled back on itself before being coiled on the bobbin. This configuration causes the opposing electrical currents to cancel out their respective magnetic fields, minimizing unwanted self-inductance.

Why is Manganin chosen for this laboratory resistance coil?

Manganin is selected because it features an exceptionally low temperature coefficient of resistance. This thermal characteristic ensures that the coil maintains a highly stable 1 Ohm value even if it warms slightly during an experiment.

Can I use this 1 Ohm coil for high-power electronics projects?

No, this coil is engineered explicitly for low-voltage, low-current educational physics experiments and standard laboratory measurements.

What types of electrical connections does this component support?

The unit features universal 4mm binding posts that easily accept standard banana plugs, spade lugs, alligator clips, or stripped hookup wires.

How do I check the health or calibration of the coil?

You can connect the coil to a calibrated digital multimeter or evaluate it using a high-accuracy Wheatstone bridge setup to confirm its nominal 1 Ohm rating.
