Materials Laboratory With Data Capture
Product Code : LSK-MTE-10499

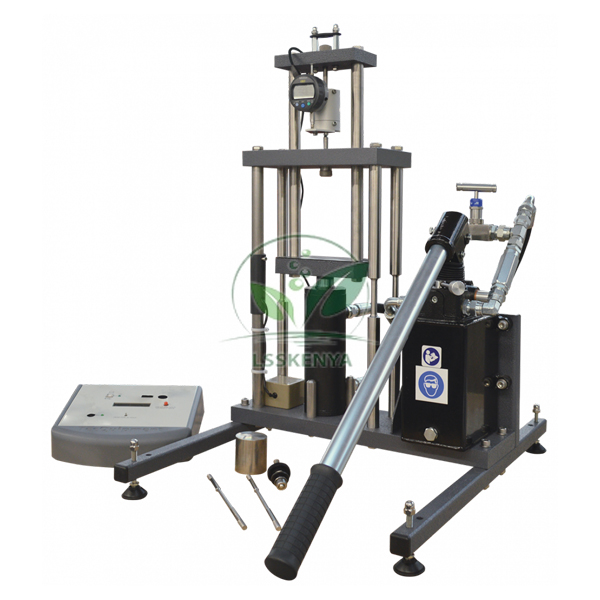

Materials Laboratory With Data Capture (SKU LSK-MTE-10499) is a hydraulic tensile and Brinell hardness testing machine that sends force and extension readings to a computer for graphing. It suits small student groups in materials testing and strength-of-materials labs at engineering colleges and polytechnics. Science Lab Supplies manufactures the load frame, display unit and fittings at Plot 448, HSIIDC Industrial Area, Saha, Ambala, India, and that same site quotes the machine to institutions, tender contractors and distributors.
Specifications
The table lists every component of this data-capture materials lab. In short, a load frame on adjustable legs carries a hand-pumped hydraulic ram, a display unit shows force and passes data to a computer, and a digital extensometer and ball indenter cover tensile and hardness tests within the machine's strength and hardness limits.
| Specification | Value |
|---|---|
| SKU | LSK-MTE-10499 |
| Machine type | Hydraulic tensile and Brinell hardness testing machine |
| Load frame | Mounted on adjustable legs; can be fixed to a bench |
| Loading | Hydraulic ram worked by a pump handle |
| Force readout | Display unit with digital force display |
| Data interface | Display unit sends data to a suitable computer |
| Extensometer | Digital display of extension; connects to the display unit |
| Hardness indenter | Ball indenter for Brinell tests |
| Hardness specimen support | Platen |
| Software | Included; records test data |
| Graphs | Force against elongation; stress against strain |
| Computer | Not included |
| Safety | Lockable guard for tensile and hardness tests |
| Specimens | Any suitably shaped specimen within the maximum strength and hardness limits |
| Extra specimens | Additional low-cost test specimens available |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Materials Laboratory With Data Capture
With it, students pull specimens to failure and use the captured data to find ultimate tensile strength, proof stress and Young's modulus, then switch to the ball indenter to calculate Brinell hardness. The software turns each test into force-elongation and stress-strain graphs for reports.
- B.E./B.Tech mechanical, civil and production: tensile test and stress-strain curve, with specimen dimensions taken on an Electronic Digital Vernier Caliper.
- Materials science and metallurgy practicals: Brinell hardness of different metals.
- Physics and engineering comparison: Young's modulus from the machine set against a wire test on the Young's Modulus Apparatus (Searle's Pattern).
- Diploma engineering and TVET modules: computer-based data logging in material testing.
Standard Scope of Supply
The set comprises the load frame with adjustable legs and hydraulic ram, the display unit with digital force readout, the extensometer with digital display, a ball indenter for Brinell tests and software for data recording and graphs. The computer is not included, and additional test specimens can be quoted.
Packing, MOQ and Lead Time
Request a price for a single machine or for a complete materials lab. The quotation lists packing, delivery time and price for your quantity. Buyers comparing engineering lab equipment manufacturers in India can add extra test specimens to the same quotation.
With a registered Importer-Exporter Code, Science Lab Supplies is able to ship to buyers in Uganda, the UAE, Saudi Arabia, Oman, the Philippines and Nepal. A data-capture lab can be priced by sending your requirement through the contact page or saving it in the enquiry cart; the lab tender page sets out how tendered orders are handled.
Frequently Asked Questions
Is a computer supplied with the software?
No. The software is included, but the computer is not. The display unit sends force data to a suitable computer, and the extensometer connects to the display unit so extension is captured too.
What results can students obtain?
From tensile tests: ultimate tensile strength, proof stress and Young's modulus, with force-elongation and stress-strain graphs. From hardness tests: the Brinell hardness number, calculated from the load and the measured impression.
Does Science Lab Supplies manufacture this machine?
Its hydraulic frame, display unit and guard are produced and assembled in the Saha, Ambala plant, which means the price, specification and delivery on your quotation are set by the maker itself.
How many students can work on it at once?
It is designed for small groups: one student can work the hydraulic pump while others note readings or run the software on the connected computer to build the graphs.
