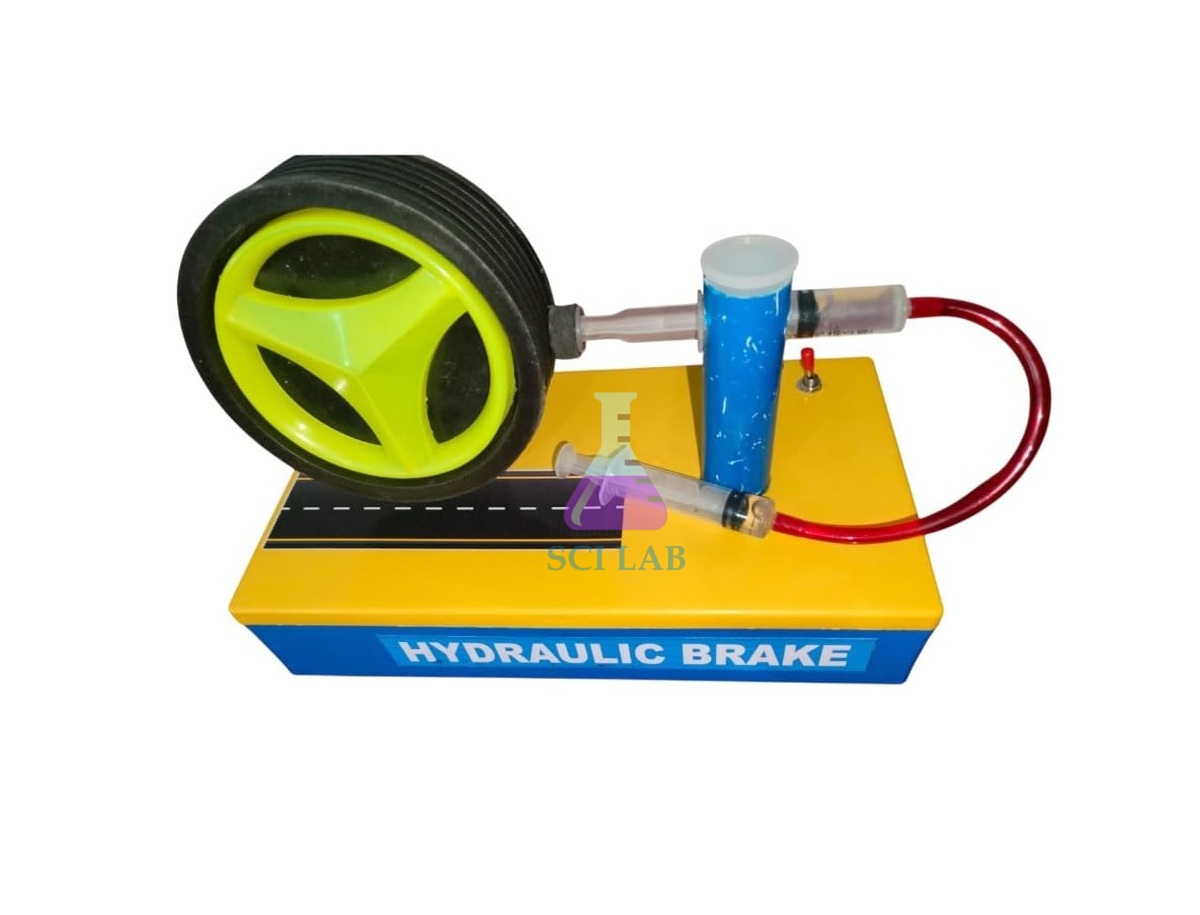

Hydrostatic Pressure Mechanical Brake Model

Product Code : SCL-SK-12141

The Hydrostatic Pressure Brake Model is an engineering and physics laboratory apparatus used for demonstrating hydraulic pressure transmission, Pascal’s law, brake actuation and mechanical braking action. It is suitable for schools, colleges, polytechnic institutes, TVET labs, mechanical engineering labs, physics teachers, trainers and educational procurement buyers.

Product Description

The Hydrostatic Pressure Mechanical Brake Model from Science Lab Supplies is intended for classroom and laboratory demonstrations of how fluid pressure can transmit force to operate a brake mechanism. The supplied product name confirms a hydrostatic-pressure brake model, but the pressure range, cylinder layout, piston size, brake type, working fluid and dimensions must be confirmed before final catalogue publication.

This model helps students connect fluid mechanics with a real mechanical application. It supports lessons on pressure, force multiplication, hydraulic transmission, brake response, actuator movement, leakage awareness and load resistance in controlled educational demonstrations.

Key Features

• Hydrostatic pressure demonstration: shows how pressure in a confined fluid can transmit force.
• Brake-mechanism learning: links fluid pressure with mechanical braking action.
• Pascal’s law application: helps students understand equal pressure transmission in hydraulic systems.
• Engineering teaching value: suitable for mechanical engineering, automobile, TVET and applied physics labs.
• Capacity not applicable: this is a hydraulic/mechanical demonstration model, not a liquid-volume product.
• Hands-on observation: allows learners to observe input force, fluid movement and brake response.
• Specification-dependent performance: pressure limit, fluid type, piston size and load rating must be verified.

Technical Specifications

What's Included in the Kit

• Hydrostatic Pressure Mechanical Brake Model
• Hydraulic cylinder, piston, tubing, brake assembly, lever, pressure gauge, working fluid container, base frame, activity guide, storage box, labels or certificate

Applications / Uses

• Demonstrating Pascal’s law in a mechanical braking system
• Teaching hydrostatic pressure and fluid-force transmission
• Explaining hydraulic brake operation in engineering labs
• Showing how input force can create braking force through fluid pressure
• Supporting TVET, automobile engineering and mechanical engineering practicals
• Using in school physics, fluid mechanics demonstrations and science exhibitions

How to Use the Hydrostatic Pressure Mechanical Brake Model

1. Confirm the working fluid, pressure limit and approved operating method before use.
2. Place the model on a stable, level laboratory bench.
3. Inspect tubing, seals, piston, brake parts and pressure gauge for damage or leakage.
4. Fill the system only with the approved working fluid if filling is required.
5. Apply force slowly to the input lever or piston.
6. Observe pressure change, piston movement and brake actuation.
7. Record the relationship between applied force, pressure and braking response.
8. Release pressure and drain or store the model as directed after the experiment.

Safety note: Use under instructor supervision. Do not exceed the confirmed pressure limit, use unapproved fluids, operate with leaking tubing, place fingers near moving brake parts, or apply sudden excessive force to the model.

Care & Maintenance

• Clean and dry the model after demonstrations involving water or fluid.
• Check seals, tubing, joints and gauge connections before each practical session.
• Store the model away from heat, dust, corrosion and direct impact.
• Remove from use if leaks, cracked tubing, damaged pistons, loose brake parts or unstable readings are observed.

Why Choose Science Lab Supplies

Science Lab Supplies manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models and STEM models. Its product range supports science lab equipment, physics lab equipment, fluid mechanics, mechanical engineering lab equipment and TVET training requirements. The brand supplies educational institutions, engineering colleges, distributors and bulk tender buyers requiring practical laboratory teaching apparatus.

Frequently Asked Questions

What is a Hydrostatic Pressure Brake Model used for?

A Hydrostatic Pressure Brake Model is used to demonstrate how fluid pressure can transmit force and actuate a brake mechanism.

What principle does this model demonstrate?

It demonstrates Pascal’s law, hydrostatic pressure, force transmission, piston movement and hydraulic brake action.

What pressure range does the model support?

The pressure range is not confirmed. Add pressure values only after checking the final product specification or supplier datasheet.

What type of brake is included?

The brake type is not confirmed. Add disc, drum, pad, lever or other brake details only after supplier verification.

Can it be used in TVET or engineering labs?

Yes. It is suitable for supervised TVET, mechanical engineering, automobile engineering, fluid mechanics and applied physics demonstrations.

Is it safe for student practicals?

Yes, when used under supervision, within the confirmed pressure limit, with approved fluid and with hands kept away from moving brake parts.
