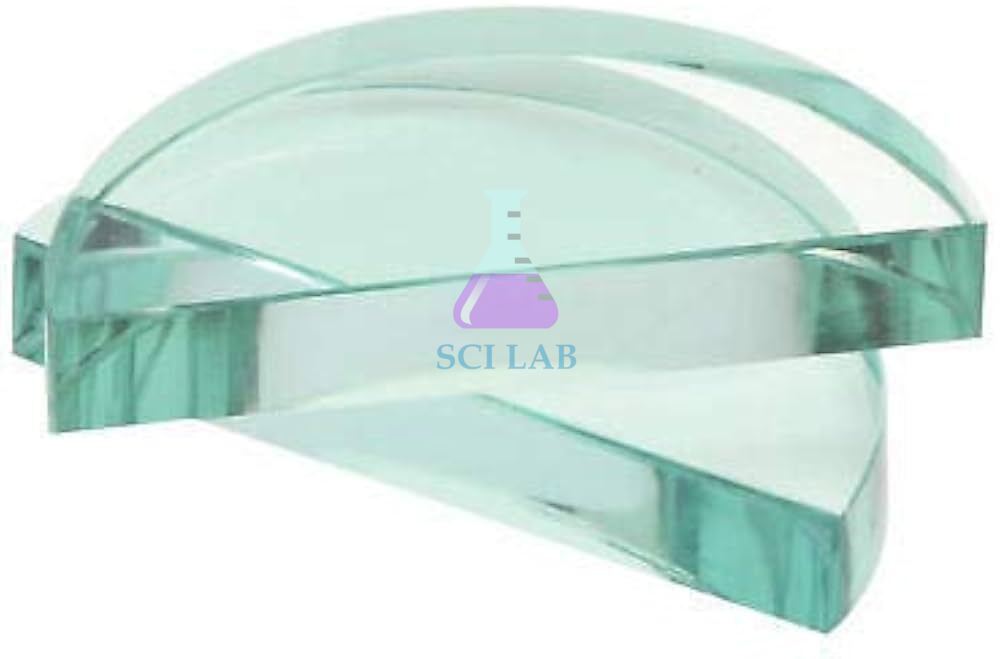

Half-Round Optical Glass Slab

Product Code : SCL-LAO-12086

The Semi-Circular Glass Slab is a high-transmittance optical refraction block used for demonstrating the paths of light rays as they transition between different media. Engineered for physics educators and university science students, this foundational component provides an unambiguous, physical platform to verify Snell's law, measure critical angles, and observe total internal reflection.

Product Description

This optical element is crafted from premium flint or crown glass, providing exceptional structural clarity and a uniform refractive index throughout its volume. All surfaces are precision-ground and polished to optical flatness to minimize diffuse beam scattering, ensuring that entry and exit rays remain sharp during laser ray tracing activities. The block features an engineered structural profile designed to lay completely flush on diagnostic charts.

For academic institutions expanding their inventories of standard , this slab offers exceptional pedagogical value. It shifts abstract optical mathematics into distinct, observable behaviors on tracking boards, making it a reliable addition for general wave mechanics labs and multi-component optics experiment kits. The durable silicate glass structure stands up to decades of seasonal handling without losing internal clarity.

Key Features

• High-Optical Purity Glass: Manufactured with premium silicate glass to deliver maximum light transmission and minimal internal bubble distortion.
• Precision Polished Margins: Features fully polished rectangular and semicircular outer limits to produce clean, sharp ray refraction profiles.
• Frosted Bottom Face: Designed with a finely texturized frosted bottom surface that captures and maps light paths clearly on horizontal mats.
• Perfect Semicircular Symmetry: Engineered with a uniform radius of curvature to guarantee predictable beam trajectories along the geometric center point.
• Shatter-Resistant Edges: Finished with protective microscopic edge chamfers to prevent minor chipping during frequent student handling.

Technical Specifications

What's Included in the Kit

• 1 x Semi Circular Glass Slab optical block
• 1 x Protective velvet-lined storage pouch
• 1 x Product instruction sheet with sample ray tracing tracking layouts

Applications / Uses

• Investigating light ray refraction indices to confirm Snell's law parameter distributions:
• Determining the precise critical angle for a glass-to-air boundary interface using the geometric equation:
• Demonstrating the threshold transitions of total internal reflection across internal planar margins.
• Serving as a core standalone asset alongside advanced optical didactic models in physics workshops.

How to Use the Semi Circular Glass Slab

1. Place the white tracking worksheet flatly on a level physics bench or alignment table.
2. Set the Semi Circular Glass Slab down onto the tracking sheet, aligning its flat edge with the coordinate axis.
3. Direct a narrow, concentrated light ray from a laser or ray box through the curved surface directly toward the geometric center point.
4. Observe how the beam travels un-deviated through the curved boundary because it strikes the surface at a normal $90^\circ$ angle.
5. Trace the incoming angle ($\theta_1$) and the exiting refracted angle ($\theta_2$) at the flat surface boundary using a pencil.
6. Increase the angle of incidence progressively until the exit ray slides parallel along the flat margin to note the critical angle.

Safety Note: Avoid looking directly into the aperture of any companion laser light source utilized during alignment procedures to prevent optical strain or eye injury.

Care & Maintenance

• Cleaning: Wipe down the polished glass faces gently with a lint-free microfiber cloth and standard lens cleaning solution; avoid coarse paper towels that cause fine abrasions.
• Storage: Always return the glass element to its velvet-lined storage pouch to shield the polished faces from abrasive contact with other tools.
• Handling: Grip the slab by its frosted bottom or upper edges to avoid depositing skin oil smudges on the active optical paths.

Why Choose Science Lab Supplies

Science Lab Supplies is an established manufacturer and premier global exporter of robust laboratory instruments and STEM kits. With decades of manufacturing experience, we combine high-grade raw structural materials with absolute geometric accuracy to build durable educational tools. Our production facilities maintain rigid ISO quality control checking frameworks to guarantee consistent performance across every batch shipped. We leverage comprehensive international logistical systems to execute prompt bulk delivery to schools, colleges, and distribution firms worldwide.

Frequently Asked Questions

Why is a semicircular shape used for refraction experiments?

The semicircular geometry ensures that light rays directed at the center point strike the curved surface perpendicular to its tangent line, passing through without bending, which allows students to isolate and study the refraction occurring purely at the flat glass-air interface.

What is the difference between a glass slab and an acrylic block?

A glass slab features higher optical purity, a stable refractive index, and superior scratch resistance over long periods of use, whereas an acrylic block is lighter and more drop-resistant but susceptible to fine scratching.

Can this slab be used with green and blue lasers?

Yes, the high-transmittance optical glass accommodates all visible laser light frequencies, making it perfect for studying wavelength-dependent dispersion.

How do you determine the critical angle with this block?

By directing a ray from within the curved side toward the flat boundary and increasing the incidence angle until the emergent ray travels at exactly $90^\circ$ to the surface normal, you identify the critical angle limit.

Is the bottom of the slab supposed to be frosted?

Yes, the frosted bottom face helps scatter a tiny fraction of the grazing light downward, making the tracking path of the laser highly visible along the paper worksheet underneath.
