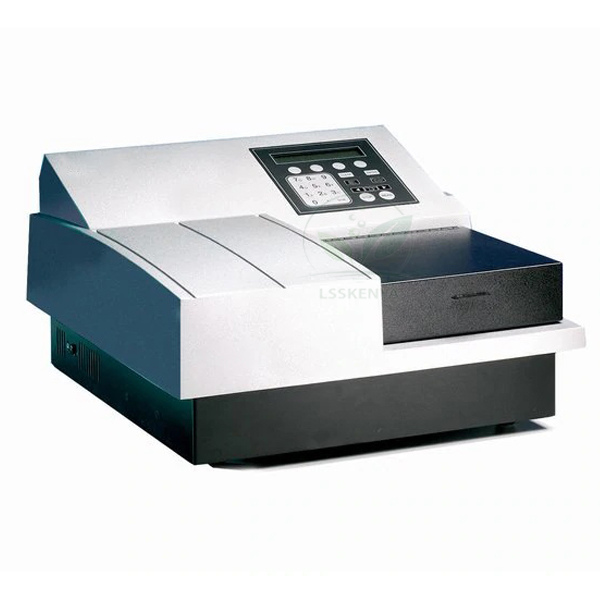

ELISA Reader 8 Channel
Product Code : LSK-CL-11280
ELISA Reader 8 Channel (SKU LSK-CL-11280) is an automatic bench-top microplate reader that measures absorbance from 0.001 to 4.000 OD across 380–900 nm in all common 96-well plates, using eight measuring detectors and one reference detector. It runs endpoint and kinetic assays and reduces the data on board. It suits immunology, biotechnology and medical laboratory technology training. Science Lab Supplies can provide the reader from Ambala, India, to institutes, laboratories, tender contractors and distributors.
Specifications
Rows in the table give the reader's full specification. Put briefly, it offers single, dual and multi-wavelength endpoint modes plus kinetic assays, built-in plate shaking, 50 stored protocols with at least 15 formulas per assay, storage of the last 10 plate results and English-language data reduction software on 220 V/50 Hz.
| Specification | Value |
|---|---|
| SKU | LSK-CL-11280 |
| Type | Microplate reader for ELISA |
| Platform | Bench-top, open, automatic system |
| Measuring modes | Single, dual and multi-wavelength endpoint |
| Assay modes | Endpoint and kinetic |
| Wavelength range | 380–900 nm (extended) |
| Absorbance range | 0.001–4.000 OD |
| Detectors | Eight measuring plus one reference photo-detector |
| Panel assays | Up to 8-panel assays in a single run |
| Plate compatibility | All common 96-well microplates (flat, round, U- or V-shaped bottom) |
| Shaking | Built-in: low, medium, high and variable speeds |
| Formulas | Minimum 15 per assay (cut-off, transformation and validation) |
| Standards | Retained standards for assays spanning more than one microplate |
| Plate mapping | Automatic and manual |
| Reporting | Plate matrix, table format or both |
| Protocols | 50 user-definable assay protocols |
| Result storage | Storage and recall of the last 10 microplate results |
| Sample ID | User-definable |
| Software | On-board qualitative and quantitative data reduction software (English) |
| Power requirements | 220 V/50 Hz, with voltage surge protection |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the ELISA Reader
The reader converts the colour that develops in ELISA wells into absorbance values and then into qualitative or quantitative results using cut-off, transformation and validation formulas. It can be used in B.Sc. and M.Sc. biotechnology, immunology and MLT practicals that teach how plate-based immunoassays are measured and reported.
- ELISA practicals: reading a 96-well plate filled with a Digital Pipette 8 Channels after the final wash.
- Timing substrate development with a Mechanical Timer 60min before an endpoint reading.
- Kinetic assays that follow the change in absorbance over time.
- Running up to 8 panel assays on one plate and reporting them in matrix or table format.
Standard Scope of Supply
The reader is supplied as one bench-top unit with its built-in shaker, on-board data reduction software in English and protocol storage. Microplates, ELISA kits and pipettes are separate items; any of them can be listed on the quotation alongside the reader and an 8-channel washer.
Packing, MOQ and Lead Time
Quotations can be prepared for a single reader or for several reader-and-washer pairs across immunology teaching labs. Science Lab Supplies lists the packing, delivery time and price for that quantity, and tips, reservoirs or an incubator can be included on the same quotation.
An Importer-Exporter Code allows Science Lab Supplies to ship to buyers in Sri Lanka, Vietnam, Malaysia, Peru, Egypt and Iraq. Send your requirements via the contact page, save the reader in the enquiry cart, or follow the lab tender page for bids.
Frequently Asked Questions
What wavelength and absorbance range does the reader cover?
It reads across an extended wavelength range of 380–900 nm and an absorbance range of 0.001–4.000 OD, in single, dual or multi-wavelength endpoint mode. Eight measuring photo-detectors and one reference detector take the readings.
Which plates does it accept?
It accommodates all common 96-well microplates with flat, round, U- or V-shaped bottoms. Built-in shaking at low, medium, high or variable speed mixes the wells before a reading is taken.
How are results stored and reported?
Results are reported in plate matrix or table format, or both, and the last 10 microplate results can be stored and recalled. Plate maps can be set automatically or manually, and each sample can carry a user-defined ID.
Who supplies the ELISA Reader 8 Channel?
This reader is available on quotation from Science Lab Supplies, Ambala, India, for institutes, laboratories, tender contractors and distributors, and a washer, tips or reservoirs can be added to the same quotation on request.
