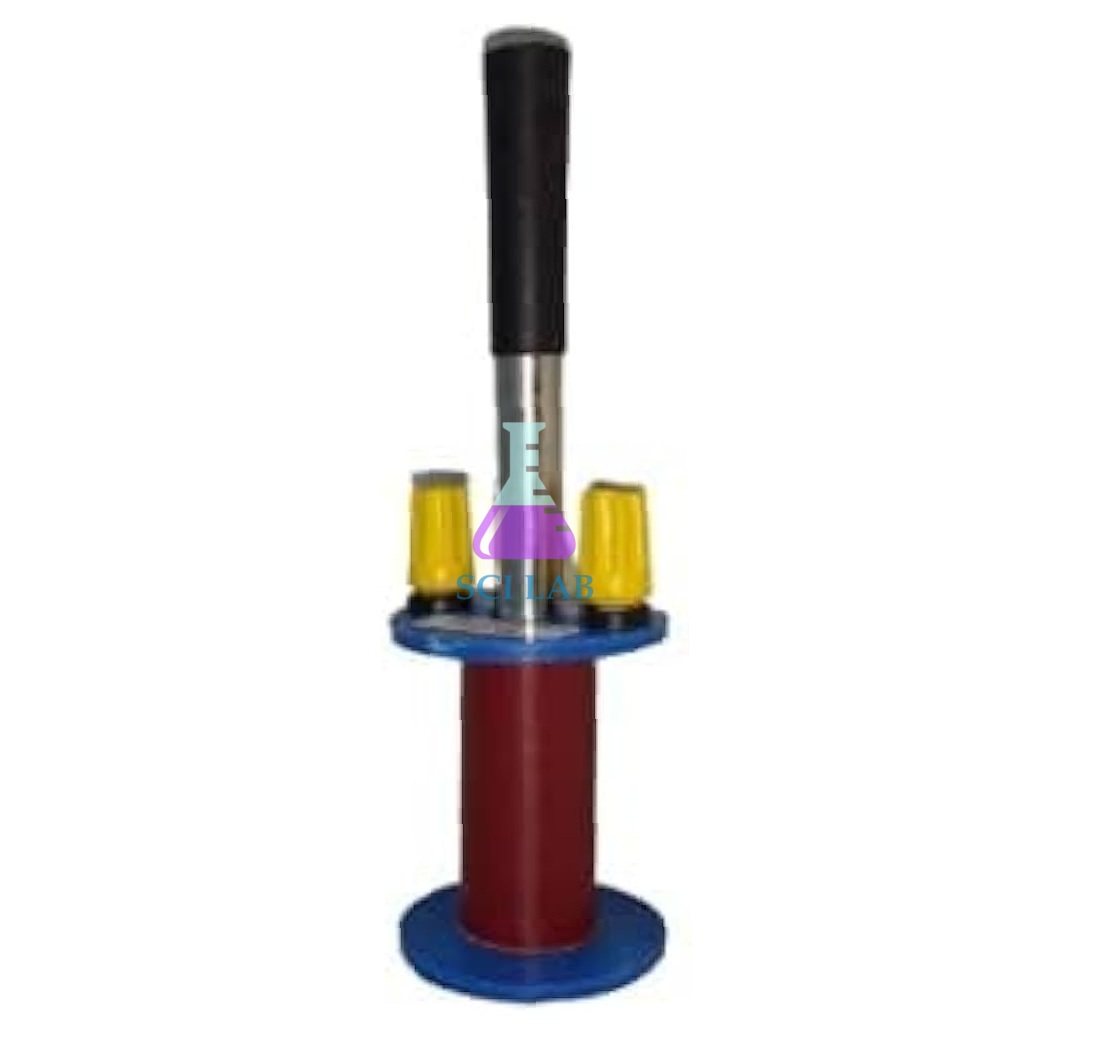

Electromagnetic Driver for Sonometer

Product Code : SCL-AM-12100

The Electromagnetic Driver for Sonometer is a precision-engineered acoustic coil module used for inducing continuous wave oscillations in ferromagnetic wires during resonance experiments. Designed for university physics educators and laboratory students, this apparatus eliminates the measurement variances of manual wire plucking to ensure predictable, highly repeatable frequency mapping.

Product Description

This advanced physics laboratory excitation module provides an optimized alternative to mechanical striking during fundamental wave mechanics investigations. Fabricated with a high-density enameled copper coil wound around a soft iron pole piece, the device translates alternating current signals from an external function generator into a dynamic magnetic field. This field continuously drives the sonometer's steel wire without physical contact, preventing structural dampening and preserving the true harmonic characteristics of the wave.

For educational institutions expanding their baseline inventory of physics lab equipment, this driver offers exceptional utility and experimental reliability. The entire electromagnetic mechanism is safely enclosed within an impact-resistant polymer housing featuring an integrated height-adjustable support assembly. By providing a stable, uniform driving force, this tool allows students to achieve distinct, stable resonant nodes that can be precisely measured and verified against acoustic physics equations.

Key Features

• Non-Contact Excitation: Induces continuous periodic oscillations using electromagnetic fields to completely eliminate manual striking errors.
• High-Density Copper Windings: Engineered with premium insulated enameled copper wire to ensure efficient electromagnetic conversion and low thermal dissipation.
• Universal Input Interface: Equipped with standard 4 mm safety banana plug sockets to establish quick links with universal laboratory function generators.
• Adjustable Spatial Elevation: Mounted on a heavy-duty, sliding pillar frame that allows users to adjust the vertical clearance between the pole piece and the wire.
• Ventilated Protective Housing: Enclosed in a rugged ABS plastic shell designed with micro-ventilation slots to dissipate heat during long runtime cycles.
• Concentrated Magnetic Field: Utilizes a custom-shaped soft iron core to focus magnetic flux lines directly onto a localized section of the test string.

Technical Specifications

What's Included in the Kit

• 1 x Electromagnetic Driver for Sonometer main coil assembly
• 1 x Height-adjustable laboratory stand support clamp
• 2 x Heavy-duty 4 mm banana plug patch cords (1-meter length)
• 1 x Experiment guide book featuring baseline frequency calibration templates

Applications / Uses

• Inducing continuous standing waves in steel wire strings to analyze fundamental frequencies and harmonic overtones.
• Investigating acoustic resonance properties alongside specialized acoustic apparatus components in advanced wave physics workshops.
• Mapping acoustic nodes and antinodes accurately by scattering paper riders along the wire surface during sustained resonance fields.
• Enhancing core kinematics and vibration coursework when deployed as part of modular wave mechanics experiment kits.

How to Use the Electromagnetic Driver for Sonometer

1. Place your sonometer housing firmly onto a level, vibration-isolated laboratory physics workbench.
2. Position the Electromagnetic Driver for Sonometer underneath the tensioned ferromagnetic steel wire at a point between the two structural bridges.
3. Turn the manual elevation adjustment knob to alter the coil height until the top of the soft iron pole piece sits roughly 2 mm to 3 mm directly below the wire path.
4. Plug the provided 4 mm banana patch cables into the driver sockets and connect the opposite ends to the output terminals of an audio signal generator.
5. Set the generator output amplitude below 5 V and adjust the frequency dial until the string reaches maximum acoustic resonance.
6. Record the corresponding input frequency value directly from the generator display shield to complete your wave mechanics calculation profiles.

Safety Operating Note: Never exceed the maximum 6 V RMS continuous power limit across the coil input boundaries to prevent internal insulation melting or thermal breakdown of the windings.

Care & Maintenance

• Cleaning: Clean the outer polymer housing and connection jacks using a dry, anti-static microfiber cloth; do not apply liquid water washes or corrosive laboratory solvents.
• Storage: Unplug the patch cords after use and store the driver assembly flat inside a dry, dust-free storage cabinet away from strong external permanent magnets.
• Handling: Avoid applying excess force when tightening the height adjustment screw to preserve the mechanical tracking threads on the support column.
