Complete Mechanics Kit
Product Code : SCL-PL-11937

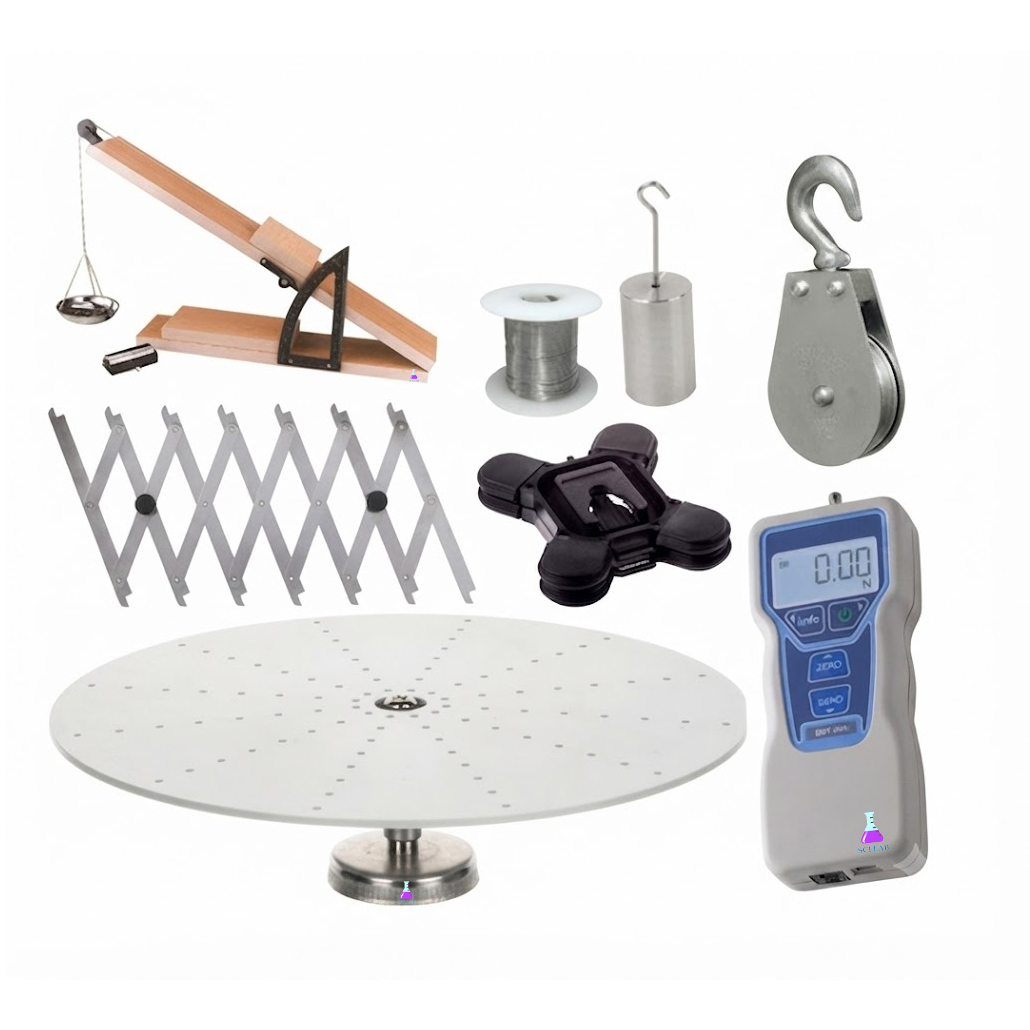

Complete Mechanics Kit (SKU SCL-PL-11937) is a magnetic demonstration set for statics: a moments disc, a 22-hole lever, pulleys, force gauges, springs, weights and an inclined plane, most of which fix magnetically to a board, so a teacher can build force diagrams in front of the class. It suits school physics from middle to senior secondary level. Schools, colleges, tender contractors and distributors can order it straight from Science Lab Supplies, which manufactures the kit at Plot 448, HSIIDC Industrial Area, Saha, Ambala, India.
Specifications
Each component of the magnetic kit has its own row below. In short, a disc of moments and an axis on magnets, a 22-hole metal lever, magnetic pulleys, dial force gauges, load cells, springs and hook weights are stored in a case with a captive lid and fold-down handle.
| Specification | Value |
|---|---|
| SKU | SCL-PL-11937 |
| Moments disc | Disc of moments on magnet, with set of lugs |
| Axis | Axis on magnet |
| Lever | Metal lever with 22 equidistant holes |
| Wire | 1 spool of wire |
| Pulleys | 4, magnetic |
| Hooks | 2, magnetic |
| Ruler | 1, magnetic |
| Dial force gauges | 2, magnetic, 2 N |
| Load cells | 4, magnetic, 2 N–5 N |
| Hook weights | Set of 12 (50, 100 and 200 g) |
| Inclined plane | Inclined plane with roller |
| Springs | 3, of different stiffness |
| Spring scale | Magnetic calibration scale |
| Markers | 2 erasable felt-tips |
| Arrows and triangles | 3 arrows, 2 magnetic triangles |
| Literature | Manual with experiment booklet |
| Storage | Case with captive lid and fold-down handle |
| Accessory | White erasable magnetic panel |
| Panel dimensions | 600 x 900 mm |
| Panel feet | Removable magnetic support feet |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Complete Mechanics Kit
Because the disc, pulleys, gauges and scales hold on a magnetic surface, forces, levers and pulleys can be arranged vertically where the whole class can see them and read the gauges. The set covers moments, simple machines, spring stretch and inclined planes across Class 6–12 science and physics.
- Principle of moments on the disc and the 22-hole lever (Class 9–11).
- Fixed and movable pulleys and mechanical advantage.
- Spring extension against load with the three springs and calibration scale, then repeated on a stand with the Hooke's Law Apparatus.
- Resolving forces on the inclined plane with the roller and force gauges, followed by angle, length and height readings on a hinged Inclined Plane.
Standard Scope of Supply
The case holds the moments disc with lugs, a spool of wire, the lever, the magnetic axis, four pulleys, two hooks, a ruler, the force gauges and load cells, twelve hook weights, the inclined plane and roller, three springs, two erasable felt-tips, three arrows, two triangles and a manual with experiment booklet.
Packing, MOQ and Lead Time
Ask for one kit for a demonstration room or several for a group of schools; each quotation spells out packing, delivery time and price for that quantity. The magnetic panel and other mechanics lab equipment in India can be added to the same quotation.
Science Lab Supplies is a registered exporter with an Importer-Exporter Code and is able to ship to buyers in Rwanda, South Africa, Qatar, Sri Lanka, Vietnam and Malaysia. If the kit is wanted for a mechanics room, the contact page takes a direct question and the enquiry cart lets you add the magnetic panel too; formal purchases are explained on the lab tender page.
Frequently Asked Questions
Does the kit need a magnetic board?
Its parts attach magnetically, so a magnetic surface is needed. A white erasable magnetic panel, 600 x 900 mm with removable magnetic feet, is available as an accessory.
What weights are included?
The kit has a set of 12 hook weights in 50, 100 and 200 g values, which can hang from the pulleys, the 22-hole lever or the springs and are kept in the case.
Is Science Lab Supplies the manufacturer or a trader?
Every part of this magnetic kit is made at the Science Lab Supplies factory in Saha, Ambala, India. As the manufacturer, the company quotes it directly, without a trading layer in between.
Is a teacher's guide provided?
Yes. A manual with an experiment booklet is part of the kit and is stored in the case with the captive lid and fold-down handle.
