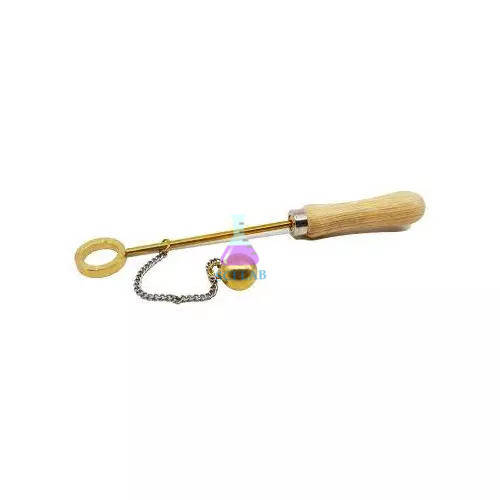

Brass Ring and Ball Apparatus

Product Code : SCL-AM-12106

The Brass Ring and Ball Apparatus is a classic physics laboratory instrument used for demonstrating the thermal expansion of solid matter in educational environments. Designed primarily for science teachers, students, and lab instructors, this apparatus provides a clear, visual proof of kinetic theory by showing how metals change volume when subjected to temperature changes.

Product Description

The Brass Ring and Ball Apparatus from Science Lab Supplies is engineered to provide an engaging hands-on experience in thermodynamics. The tool consists of a precision-matched brass ball and a brass ring, each mounted on independent, heat-resistant handles. At room temperature, the ball passes freely through the ring. When the ball is heated over a flame, it expands and can no longer pass through the ring, illustrating the structural behavior of molecules under heat.

This essential physics lab equipment is built to withstand repeated heating and cooling cycles in busy academic environments. It serves as a foundational tool for middle school, high school, and introductory university science courses. By providing a tangible demonstration of thermal properties, it bridges the gap between abstract thermodynamic formulas and real-world physical changes.

Key Features

• Premium Brass Construction: The ball and ring are manufactured from high-grade solid brass to ensure high thermal conductivity and a distinct rate of expansion.
• Insulated Safety Handles: Equipped with durable, heat-resistant wooden handles that keep user hands safe from thermal energy during demonstrations.
• Precision Engineering: The inner diameter of the ring is calibrated precisely to the outer diameter of the ball at room temperature, ensuring immediate results upon heating.
• Corrosion Resistant: The selected brass alloy resists oxidation and tarnishing, maintaining structural integrity over long-term laboratory use.
• Curriculum-Aligned: Perfectly complements standard thermodynamics experiments outlined in international physics textbooks.

Technical Specifications

What's Included in the Kit

• 1 x Solid Brass Ball mounted on an insulated handle
• 1 x Solid Brass Ring mounted on an insulated handle
• 1 x Instructional Guide with experiment steps

Applications / Uses

• Demonstrating the kinetic theory of matter and molecular motion in classroom environments.
• Calculating structural changes related to the coefficient of linear expansion during advanced student physics labs.
• Supplementing interactive science kits used in STEM workshops and science museum demonstrations.
• Serving as a baseline training tool for laboratory instruments handling and heat safety protocols.

How to Use the Brass Ring and Ball Apparatus

1. Room Temperature Test: Verify that the brass ball passes easily through the brass ring before applying any heat.
2. Apply Heat: Hold the handle of the brass ball securely. Place the brass ball into the flame of a Bunsen burner or portable heat source for approximately 1 to 2 minutes.
3. Demonstrate Expansion: Attempt to pass the heated brass ball through the ring. The ball will rest on top of the ring, failing to pass through due to thermal expansion.
4. Demonstrate Contraction (Optional): Submerge the heated ball into a beaker of cold water for 10 seconds. Attempt to pass the ball through the ring again; it will slide through freely as it contracts back to its original volume.

Safety Note: The metal components become extremely hot during this experiment. Never touch the brass ball or ring directly with bare skin during or immediately after heating.

Care & Maintenance

• Cleaning: Wipe the brass elements with a clean, dry microfiber cloth after every use to remove soot or carbon deposits from the burner flame.
• Storage: Store the apparatus in a dry, moisture-free storage cabinet to prevent unnecessary oxidation of the metal surfaces.
• Handling: Regularly check that the handles remain firmly attached to the metal rods to prevent accidental drops during demonstrations.

Why Choose Science Lab Supplies

Science Lab Supplies is a premier manufacturer and global exporter of high-quality scientific laboratory instruments. With decades of manufacturing experience, we deliver robust didactic models and comprehensive mathematics kits to schools, universities, and distributors worldwide. Our rigorous quality control protocols ensure that every piece of educational equipment is accurate, highly durable, and compliant with international educational benchmarks.

Frequently Asked Questions

How does the Brass Ring and Ball Apparatus demonstrate thermal expansion?

When the brass ball is heated, the thermal energy increases the kinetic movement of its atoms, causing them to take up more space. This expansion increases the ball's overall volume, making it too large to fit through the ring until it cools down.

Why is brass chosen for this specific apparatus?

Brass is selected because it possesses a relatively high coefficient of linear expansion and excellent thermal conductivity. This allows the apparatus to expand quickly and noticeably over a standard Bunsen burner flame without melting.

Can the ball get permanently stuck inside the ring?

If the ball is heated and forced tightly into the ring, the ring may absorb heat from the ball, expand, and trap it temporarily. If this occurs, let both pieces cool down completely to room temperature, and they will separate easily.

What heat source is recommended for this experiment?

A standard laboratory Bunsen burner is ideal for heating the apparatus. Alternatively, a portable gas burner or alcohol butane torch can be used effectively under adult supervision.

Is the handle safe to touch during extended heating?

Yes, the apparatus features extended wooden handles designed explicitly for low thermal conductivity, keeping your hands isolated from the heat source during normal classroom demonstrations.
