Electromagnet ‘U’ shape Two Coils
.jpg)
Product Code : SCL-AM-12108

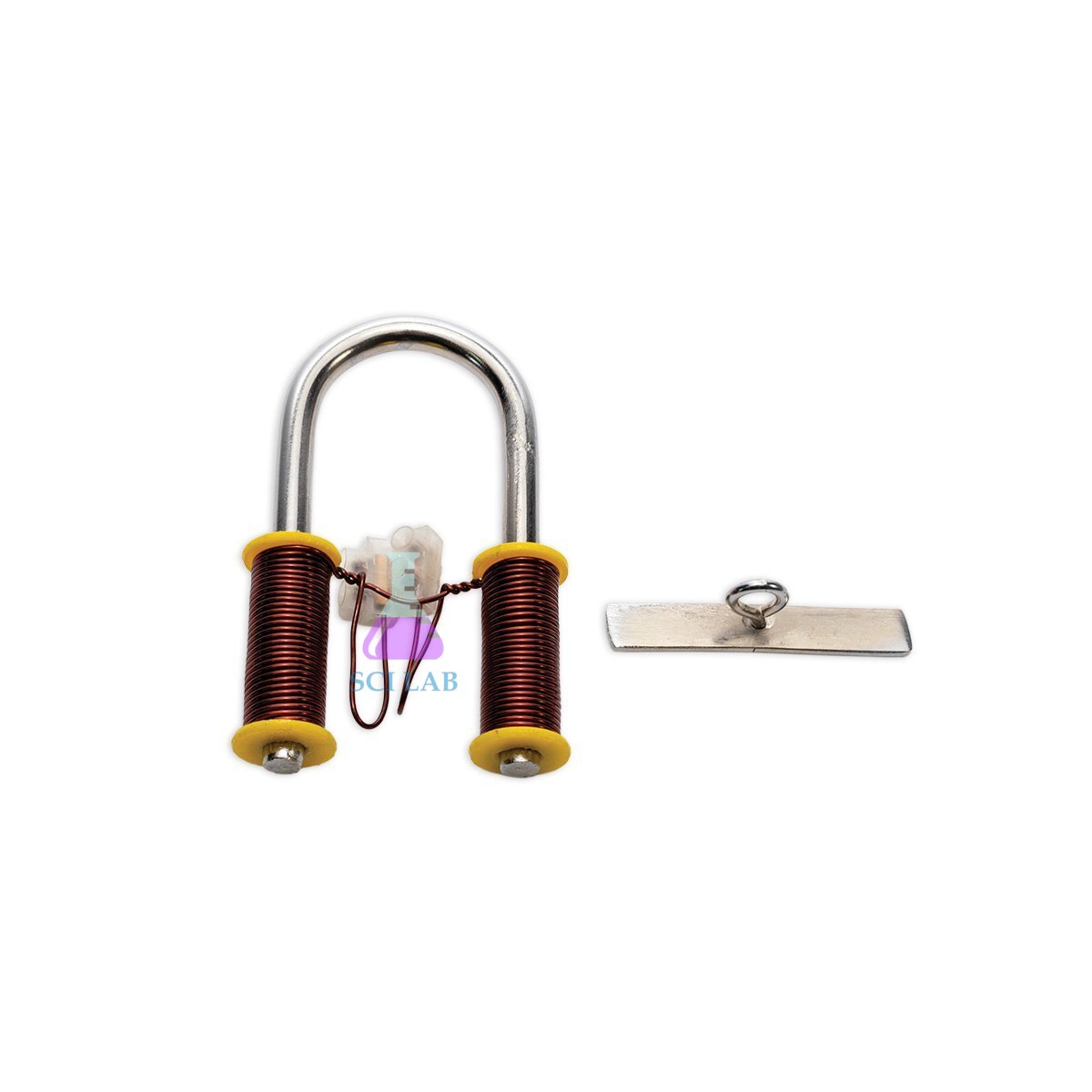

Electromagnet ‘U’ shape Two Coils (SKU SCL-AM-12108) is a U-shaped soft iron core carrying two copper coils, with a removable iron armature that the poles grip when current flows. It shows how an electric current creates a temporary magnet and how much load that magnet can hold, in secondary-school and college physics labs. Science Lab Supplies builds the electromagnet in its Saha, Ambala factory (Plot 448, HSIIDC Industrial Area) and supplies schools, colleges and distributors without a middleman.
Specifications
All technical details are listed in the table below. In summary, a horseshoe-shaped core of high-permeability soft iron carries two pre-wound insulated copper coils, connected through 4 mm safety binding posts and fixed on a non-conductive base, for use on 4–6 V DC at no more than 2 A.
| Specification | Value |
|---|---|
| SKU | SCL-AM-12108 |
| Core shape | U (horseshoe) configuration |
| Core material | High-permeability soft iron |
| Coils | Two independent, interconnected coils, one on each limb |
| Coil material | Insulated copper wire |
| Operating voltage | 4–6 V DC |
| Maximum current | 2 A |
| Terminals | 4 mm safety binding posts |
| Armature | Removable soft iron keeper with central suspension hook |
| Mounting | Fixed to a stable, non-conductive base |
| Documentation | Experiment guide with wiring schematics |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the U-Shaped Electromagnet
With the armature across both poles and the coils energised, the magnet holds the keeper and any load hung from its hook; switching off releases it because soft iron keeps little magnetism. This makes the unit a clear piece of electricity and magnetism lab kit for schools and college benches.
- Class 10 science: magnetic effect of electric current, powered from a Laboratory Battery Eliminator set between 4 V and 6 V.
- Lifting tests: hanging Laboratory Slotted Masses, 2.5 kg from the hook to compare holding force at different currents, read on an Ammeter.
- Class 12 physics: comparing an electromagnet with a permanent horseshoe magnet.
- Showing the link between current, number of turns and field strength.
Stay within 2 A so the coils do not overheat, remove the weights before switching off, and keep the pole faces clean and dry.
Standard Scope of Supply
The set comprises the U-shaped soft iron core assembly with its two pre-wound coils on the base, one soft iron armature with an integrated suspension hook, and an experiment guide with wiring schematics. The DC power supply, connecting leads and slotted weights are not included and can be quoted separately.
Packing, MOQ and Lead Time
A quotation can be prepared for a single electromagnet or for one per bench across a physics laboratory. Science Lab Supplies lists the packing, delivery time and price for the quantity you specify, and power supplies, meters or weights can be included in the same offer.
With its Importer-Exporter Code, Science Lab Supplies can ship to buyers in Oman, the Philippines, Nepal, Bangladesh, Zambia and Rwanda. The business is registered under Udyam as a manufacturing enterprise (UDYAM-HR-01-0014546) and for GST (GSTIN 06ADEPJ0574F2ZU). Send your requirement via the contact page or the enquiry cart; institutional tenders are explained on the lab tender page.
Frequently Asked Questions
What power supply does the Electromagnet ‘U’ shape Two Coils need?
It is designed for a low-voltage DC supply of 4 to 6 V, with the current kept at or below 2 A. Connect the supply to the 4 mm binding posts with standard banana-plug leads.
Why is the core U-shaped instead of straight?
Bending the core brings the north and south poles side by side, so a flat armature can bridge both at once. This closes the magnetic path and gives a much stronger pull on the keeper than a straight core would.
Does the core stay magnetised after switching off?
Very little. The core is soft iron, which loses almost all of its magnetism as soon as the current stops, so the armature and any load are released when the supply is turned off.
Is Science Lab Supplies the manufacturer or a trader?
Science Lab Supplies manufactures this electromagnet itself. Production takes place at the company factory in Saha, Ambala, India, and the quotation you receive is issued directly by the maker with no trading firm involved.
Related Electromagnetism and Magnet Apparatus
These products from the Applied Mechanics, Magnetism Physics and general physics ranges cover coil winding, other electromagnets, induction coils and permanent horseshoe magnets, so complete magnetism and induction practicals can be assembled around this unit and requested together on a single quotation for the laboratory.
- DCC Copper Wire for Physics Lab (100gm Spool) — double cotton covered copper wire for winding coils.
- Electromagnet Set — electromagnet with cross rod, clamp, hook and nine hooked masses.
- Set of Coils with Removable Iron Core — 300, 600 and 1200-turn coils with binding posts.
- Induction Coils with Cores — copper coils rated at 5 A for induction and permeability work.
- Horseshoe Magnet 50mm — permanent U-magnet with N and S marked poles and a soft iron keeper.
- Horseshoe Magnet Chrome Steel — red-painted chrome steel magnets with keepers, 50 to 200 mm long.
- Pair of Horseshoe Magnets with Keeper — two 100 mm steel horseshoe magnets.
Browse the full Applied Mechanics range, the Magnetism Physics range for permanent magnets, or all physics lab equipment.
