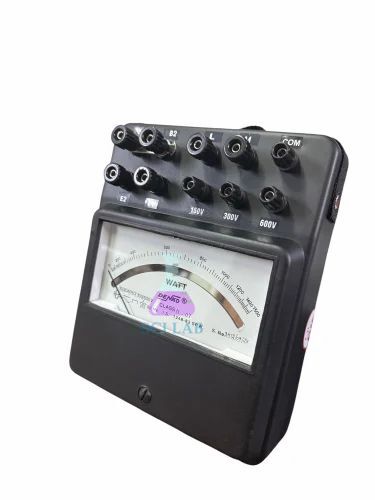

Analog Power Measuring Meter
.jpeg)
Product Code : SCL-EAE-12256
Analog Power Measuring Meter (SKU SCL-EAE-12256) is an electrical laboratory instrument that shows the power being used in a circuit on an analog pointer scale. It helps students connect voltage, current, load resistance and power during supervised practicals in school and college physics labs, electrical training panels, polytechnics and STEM classrooms. Manufactured by Science Lab Supplies at its works at Plot 448, HSIIDC Industrial Area, Saha, Ambala, India, it reaches schools, colleges, tender contractors and distributors directly from the factory.
Specifications
Each confirmed detail of the meter is given in the table below. In short, it is an analog instrument that indicates circuit power on a pointer-and-scale display, read in watts or kilowatts as the scale is marked, and suited to trainer panels, circuit boards and bench circuits within its rating.
| Specification | Value |
|---|---|
| SKU | SCL-EAE-12256 |
| Instrument type | Analog power measuring meter |
| Quantity measured | Electrical power in a circuit |
| Display | Pointer-and-scale (analog) |
| Reading unit | Watts (W) or kilowatts (kW), as marked on the scale |
| Suited to | Trainer panels, circuit boards and bench circuits |
| Scope | 1 x main unit |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Analog Power Meter
The power meter lets students compare the power they calculate from voltage and current with a direct reading. It supports lessons on power consumption, energy conversion and load testing, and is useful physics lab equipment in India for senior school, college and electrical trade laboratories.
- Class 10–12 physics: relating P = VI to an observed reading, then comparing with energy measured on a Student Digital Joulemeter.
- B.Sc. and diploma labs: power readings in heating and energy experiments, cross-checked with the Joulemeter, Low Voltage.
- Electrical trainers: watching power rise as lamps are switched in on an Electrical Lamp Load Bank 2.5 kW.
- ITI electrician training: power checks on supply and load panels under supervision.
Wire the meter with the circuit switched off, follow the wiring diagram for the model ordered, and keep voltage, current and power within its ratings.
Standard Scope of Supply
The Analog Power Measuring Meter is supplied as one main unit as described above. Its power, voltage and current ranges, AC or DC type, terminals and any leads for the version you need are stated on the quotation, and loads or companion meters are listed as separate items.
Packing, MOQ and Lead Time
Request a quotation for a single power meter or for a number of units to fit out electrical training benches. Science Lab Supplies gives packing, delivery time and price for that exact quantity, and load banks or panel meters can be grouped on the same quotation.
Holding an Importer-Exporter Code, Science Lab Supplies is able to ship to buyers in Ghana, Ethiopia, Tanzania, Uganda, the UAE and Saudi Arabia. The business is registered under Udyam as a manufacturing enterprise (UDYAM-HR-01-0014546) and for GST (GSTIN 06ADEPJ0574F2ZU). Use the contact page, the enquiry cart or the lab tender page to start an enquiry.
Frequently Asked Questions
What does the analog power meter show?
It shows the electrical power being used in the connected circuit on a pointer-and-scale display. Students can compare that reading with the product of voltage and current measured on separate meters.
Which power, voltage and current ranges are available?
Ranges depend on the version you choose for your loads and supply. Share the circuits and loads you plan to test, and the quotation will state the ranges, AC or DC type and wiring of the meter offered.
What precautions apply when using it?
Connect it only with the supply off, follow the wiring diagram, keep the load within the voltage, current and power ratings, never touch live terminals and work under a teacher or instructor.
Is Science Lab Supplies the manufacturer or a trader?
Science Lab Supplies is the manufacturer. The power meter is produced in its Saha, Ambala, India factory, and quotations are issued directly by the company that makes it.
Related Electrical Meters and Load Banks
These items surround a power meter on an electrical bench: panel voltmeter, ammeter and frequency meter, resistive load banks for applying controlled loads, a clamp meter, panel meters and an Ohm’s law apparatus with a 5 W resistance. Any can be added to the same quotation.
- Analog Panel Voltmeter 500V AC/DC — panel voltmeter for AC or DC voltage up to 500 V.
- Analog Ampere Meter Panel Mount — current on a pointer-and-scale panel display.
- Laboratory Analog Frequency Meter — needle-and-scale indication of frequency variation on generators and power-system trainers.
- Resistive Load Bank 240V AC — switchable resistive load steps for circuit and generator tests.
- Portable Resistive Load Bank — three switchable banks for balanced or unbalanced star or delta loads.
- Digital Clamp Meter — non-invasive current readings up to 1000 A on a 4000-count display.
- Panel Meters — analog case styles from 65 x 65 mm to 80 x 100 mm with knife-edge pointers.
- Digital Ohms Law Apparatus 5 watts — 100 Ω, 5 W resistance with voltage and current measurement.
Browse the full Electrical and Electronics range, the Electrical Power System range for trainers and loads, or all physics lab equipment.
