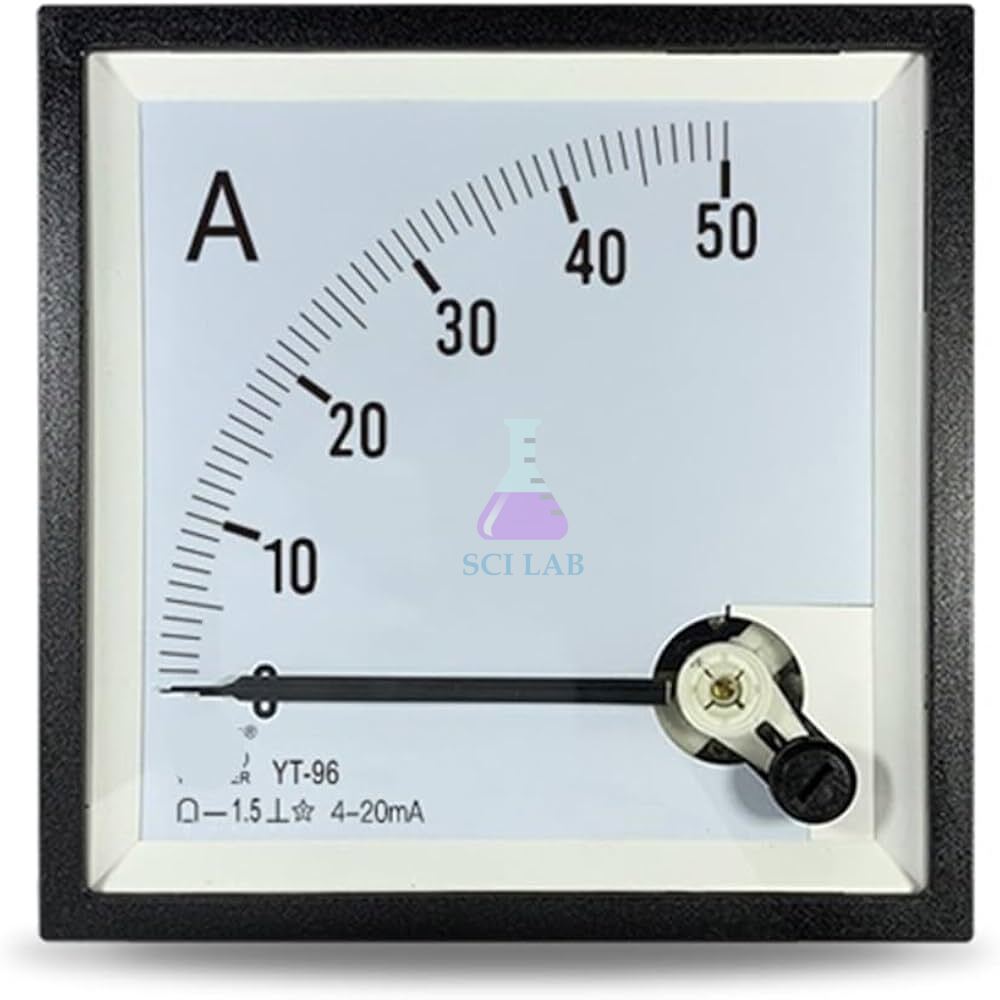

Analog Ampere Meter Panel Mount

Product Code : SCL-EAE-12254

Analog Ampere Meter Panel Mount (SKU SCL-EAE-12254) is a panel-mounted ammeter that shows the current flowing in a circuit, in amperes, with a pointer moving over an analog scale. It is fitted into electrical training panels, power-supply units and demonstration boards used in school and college physics labs, electrical workshops and STEM classrooms. Science Lab Supplies builds the meter at its factory, Plot 448, HSIIDC Industrial Area, Saha, Ambala, India, and delivers direct to schools, colleges, tender contractors and distributors.

Specifications

The table below gives every confirmed detail of this panel ammeter. In short, it is an analog current meter with a pointer-and-scale display, designed to be mounted in a panel or board and wired in series with the load, so students can follow changes in current as a circuit is adjusted.

Applications and Experiments for the Panel Mount Ammeter

Once built into a panel, the ammeter gives a permanent, visible current reading for the whole class. It suits Ohm’s law and resistance demonstrations, power-supply panels and electrical trainer boards, and is practical school physics lab equipment in India as well as an ITI and polytechnic workshop item.

• Class 10–12 physics: showing how current changes as resistance is varied with a Rheostat, Constantine (Eureka) Wire.
• Building demonstration boards that combine this meter with other Panel Meters for voltage and current.
• Diploma and ITI electrical trades: current monitoring on trainer and power-supply panels.
• B.Sc. practicals: recording current in resistance and power experiments.

Install and wire the meter only with the panel switched off, keep the circuit current within the range of the model ordered, and never touch live terminals.

Standard Scope of Supply

The Analog Ampere Meter Panel Mount is supplied as a single meter as described above. The current range, AC or DC type, terminal style, panel cut-out and any mounting hardware for the version you need are stated on the quotation, and companion meters can be ordered on the same list.

Packing, MOQ and Lead Time

Order one panel ammeter for a single board or a quantity for a batch of trainer panels. Science Lab Supplies quotes packing, delivery time and price for whatever quantity you specify, and matching panel voltmeters or frequency meters can be priced on the same document.

With its Importer-Exporter Code, Science Lab Supplies can ship to buyers in Nigeria, Kenya, Ghana, Ethiopia, Tanzania and Uganda. Ask for a quotation on the contact page, add the meter to the enquiry cart, or refer to the lab tender page for tender supply.

Frequently Asked Questions

What is a panel mount ammeter used for?
It shows circuit current on an analog scale while fixed into a panel, trainer board or power unit. That gives a permanent reading that students can watch as loads, resistance or supply voltage are changed during a practical.

How is the ammeter wired into a circuit?
It is wired in series, so the full load current passes through the meter. Connecting it directly across a supply can damage it, so always check the circuit diagram before switching on.

Can I choose an AC or DC version and a specific range?
Yes. State the current range and whether your circuits are AC or DC when you enquire, and the quotation will specify the range, type, terminals and panel cut-out of the meter offered.

Is Science Lab Supplies the manufacturer or a trader?
Science Lab Supplies is the manufacturer of this panel ammeter. It is assembled at the company’s own plant in Saha, Ambala, India, and you buy it directly from that plant.
