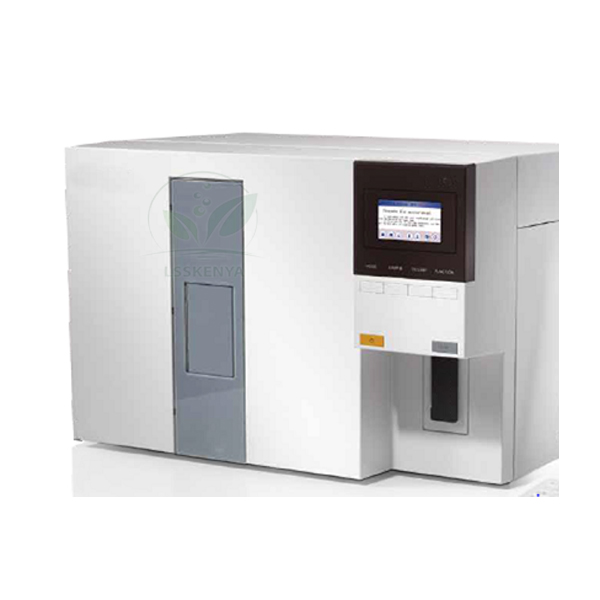

18 parameter Haematology Analyser
Product Code : LSK-CL-11283
18 parameter Haematology Analyser (SKU LSK-CL-11283) is an automated bench-top analyser that performs a complete blood count with a 5-part white cell differential on whole blood, using flow cytometry, colorimetry and electrical impedance. It processes 50 to 100 samples per hour and stores at least 100 patient records. It suits haematology modules in medical laboratory technology and biomedical training. Through Science Lab Supplies in Ambala, India, the analyser can be quoted for institutes, laboratories, tender contractors and distributors.
Specifications
All analyser specifications appear in the table. In short, it is an open, automated bench-top system that combines three measuring methods, reports the complete blood count with 5-part differential at 50–100 samples per hour, flags abnormal results, auto-calibrates, and connects to a PC by USB or to a laboratory information system.
| Specification | Value |
|---|---|
| SKU | LSK-CL-11283 |
| Platform | Bench-top, open, automated system |
| Method | Flow cytometry, colorimetry, electrical impedance |
| Sample | Whole blood |
| Scope | Complete blood count (CBC) with 5-part differential, for routine haematology |
| Throughput | 50 to 100 samples per hour |
| Red cell parameters | RBC, HGB, HCT, MCV, MCH, RDW-SD, RDW-CV |
| White cell parameters | WBC and differential: neutrophils, lymphocytes, monocytes, eosinophils, basophils |
| Platelet parameters | PLT, PDW-SD, PDW-CV, MPV |
| Data storage | At least 100 patient data, including quality control and calibrators |
| Printing | Results reportable via external printer; printouts show sample ID, date and time |
| Graphical output | Graphs, histograms and scatter graphs |
| Quality control | Flags abnormal results; auto-calibration |
| Connectivity | USB to external PC; can interface to LIS (Laboratory Information System) |
| Casing | Corrosion-proof material |
| Operating conditions | Tolerates high humidity; operating temperature 15°C to 35°C |
| Power requirements | 220 V/50 Hz, with voltage surge protection |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Haematology Analyser
The analyser gives red cell, white cell and platelet results from one whole-blood sample, so students can see how an automated complete blood count compares with manual methods. It can be used in DMLT, B.Sc. MLT and biomedical science courses for training in sample handling, quality control and result interpretation.
- Comparing the automated WBC count with a manual count on a Counting Chamber Neubauer.
- Collecting small EDTA samples in a Tube Blood Coll w/capil, which contains K2EDTA and fills to 0.25–0.5 ml.
- Reading histograms and scatter graphs to explain the 5-part differential.
- Quality-control exercises with stored QC and calibrator data.
Treat every sample as potentially infectious, follow the operating instructions for cleaning and waste, and keep the analyser in a room between 15°C and 35°C.
Standard Scope of Supply
The analyser is supplied as one bench-top unit with its built-in data management system and USB connection for an external PC. An external printer, reagents, controls and blood collection tubes can be added to the quotation as required, with each item and quantity confirmed there.
Packing, MOQ and Lead Time
Quotations can be made for one analyser or for several units across haematology teaching labs. Science Lab Supplies sets out packing, delivery time and price for the quantity requested, and collection tubes, a tube rotator or a manual cell counter can be added to the same quotation.
As the holder of an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Peru, Egypt, Iraq, Nigeria, Kenya and Ghana. To start, send details through the contact page, place the analyser in the enquiry cart, or go to the lab tender page for tender-based purchases.
Frequently Asked Questions
Which parameters does the analyser report?
It reports RBC, WBC, HGB, HCT, MCV, MCH, RDW-SD, RDW-CV, PLT, PDW-SD, PDW-CV and MPV, plus a 5-part WBC differential of neutrophils, lymphocytes, monocytes, eosinophils and basophils. Results can be shown as graphs, histograms or scatter graphs.
How many samples can it process?
Throughput is 50 to 100 samples per hour, and the built-in data management system stores at least 100 patient data, including quality control and calibrator results. Printed reports show the sample ID, date and time.
Can it connect to a computer?
Yes. It connects to an external PC via USB and can interface to a laboratory information system (LIS). Results can also be printed on an external printer for record files or student reports.
Who supplies the 18 parameter Haematology Analyser?
Buyers can obtain this analyser through Science Lab Supplies, Ambala, India, which quotes for institutes, laboratories, tender contractors and distributors and can add collection tubes, a specimen rotator or a differential cell counter.
